Place of Origin: | Changzhou, China |
---|---|
Brand Name: | ZUOAN |
Certification: | CCC |
Model Number: | ZAFC001 |
Minimum Order Quantity: | 1pcs |
Price: | 250-350USD |
Packaging Details: | firm carton |
Delivery Time: | 5-8 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 30 pcs per week |
Material: | Stainless Steel | Cooling Media: | Compressed Air |
---|---|---|---|
Air Supply: | 0.4-1.0L/s | Usable Size: | 260*80*80mm |
Dimension: | 356*138*158mm | Cable Hole: | 2* G3/4 Gland |
Weight: | 5.5kg | Mounted: | Wall, Pole |
Heat Resistant: | -25~150°C |

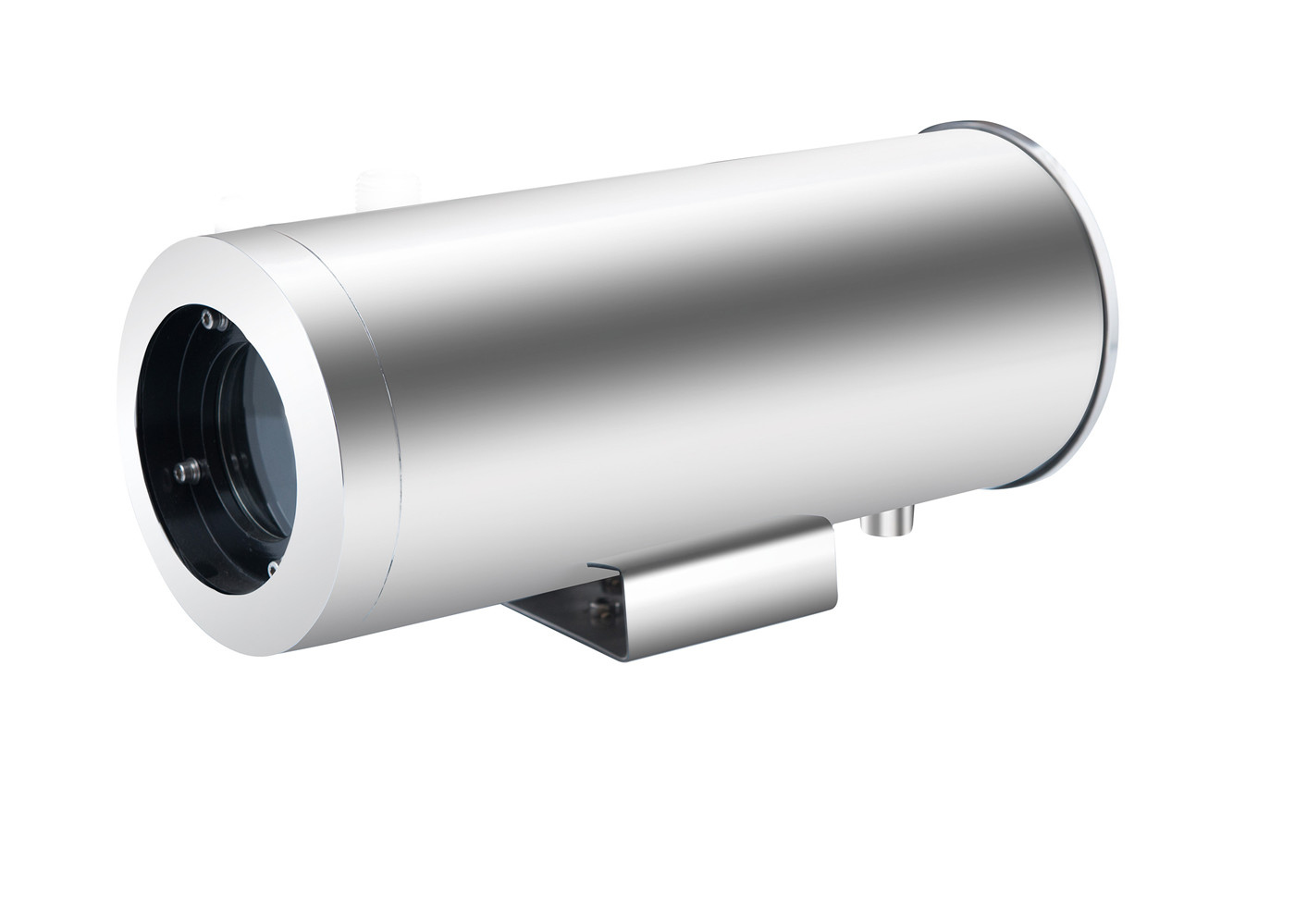

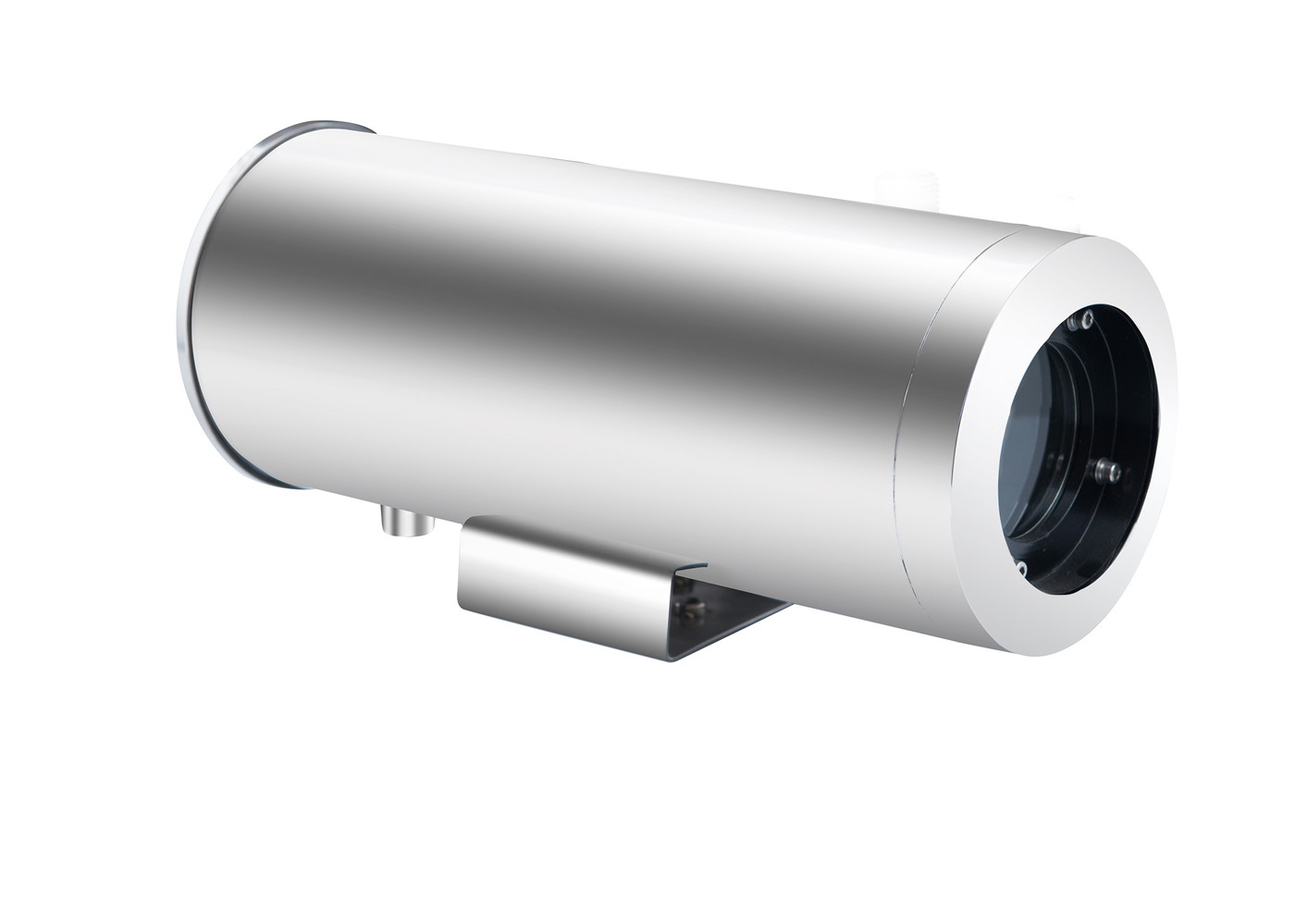

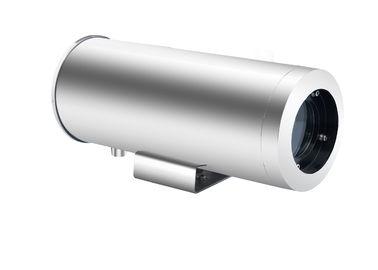

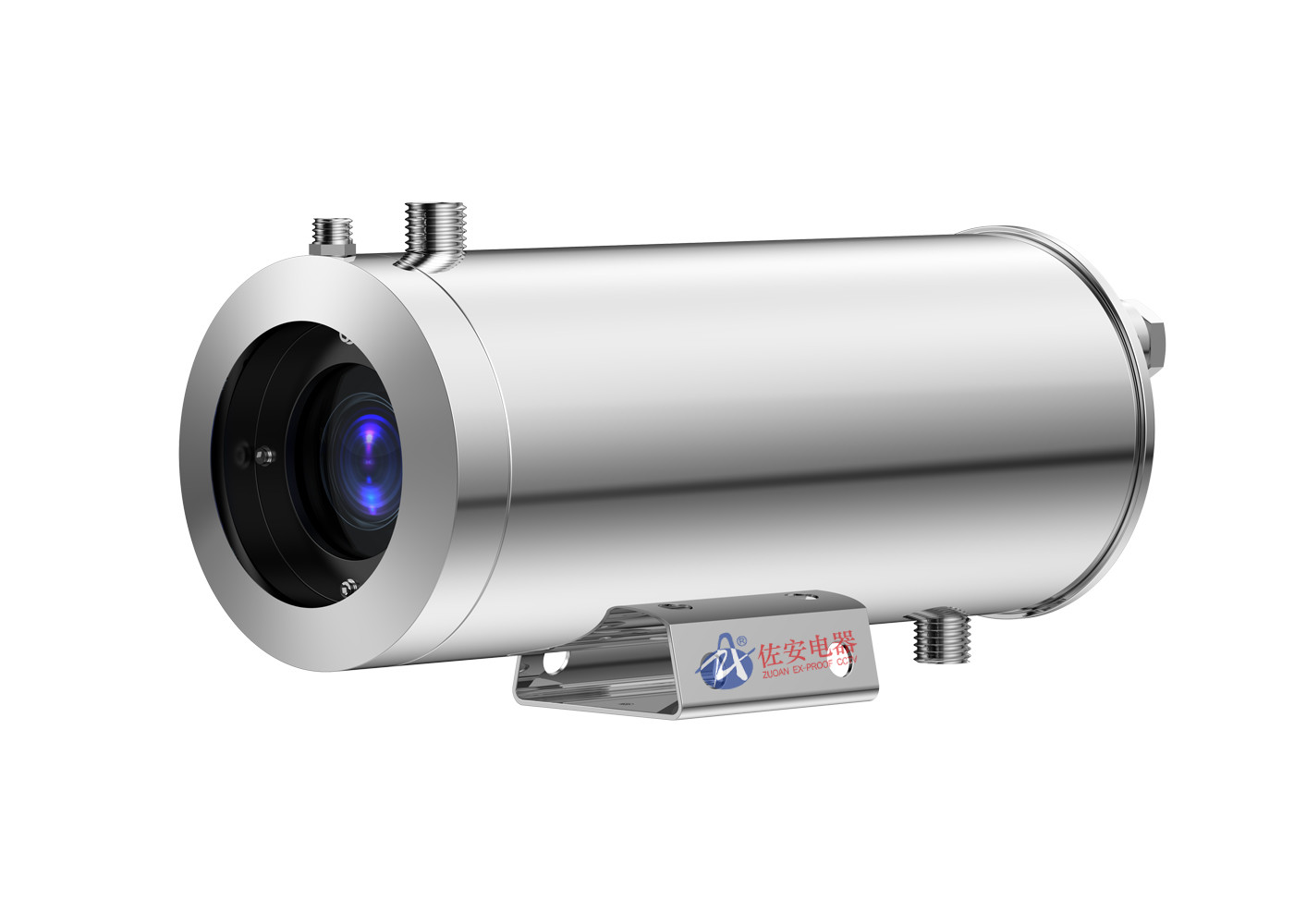

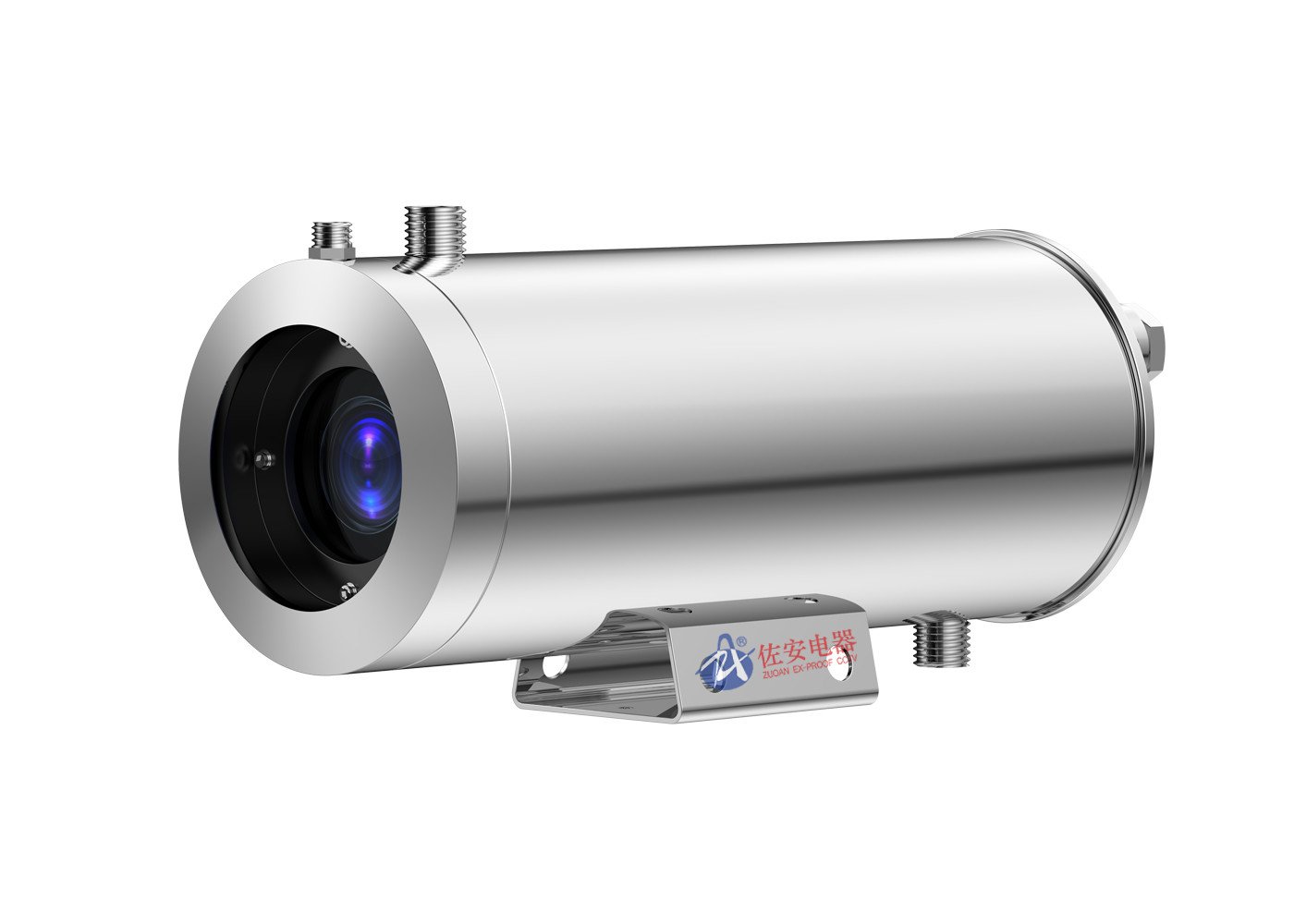

Air Cooling Stainless Steel Heat Resistant Camera Jacket for Furnace
Summary:
ZAFC001 is a commercial type air cooling heat resistant camera jacket, which housing is made of stainless steel material. The jacket needs to connect with compressed air. The cooling air will do a circulation inside of housing, so as to keep the camera working in a safety operation temperature. ZAFC001 is designed for high temperature working place, such as steel plants, power industry, furnace, glass processing line, cement industry or rotary kiln.
The air cooling jacket has usable area of 260*80*80mm, which can load zoom camera, varifocus box camera with lens. ZAFC001 can be mounted on wall bracket or pole.
If the installation site don't has compressed air pipeline, client can choose our other type heat resist housing, such as ZASC001 water cooling heat resistant camera jacket, ZAEC003 thermoelectric cooler jacket.
Air Cooling Heat Resist Jacket Features:
*Adopts two layers of stainless steel enclosure for high temperature resistant
*Surface finish: electropolished or corrosion resistant paint finish
*IP68
*2 cable G3/4 glands
*Tempered glass with nanometer paint film
*Cooling way: compress air
* temperature resist: -25 to 150 degree centigrade
* inner size for camera:260*80*80mm
* net weight:5Kg
*applicable for the extreme circumstances with explosive gas or dust, like oven, furnace, steel mills, glass processing line.
*installation: mount on wall or pole
* can load various cameras, like SONY, SAMSUNG, HIKVISION, DAHUA, PELCO, BOSCH
Air Cooling Heat Resist Jacket Applications:
ZAFC001 can widely apply for oven, furnace, steel mills, glass processing line, power industry, cement industry, rotary kiln, clinker cooler, burner, grate firing furnace, and waste combustion furnace.
Data sheet download:
ZAFC001,ZASC001 air water cooling camera housing d...
Specification:
Mechanical
Housing | Stainless steel 304 |
IP | IP66 |
Cable thread hole | G3/4 |
Air/water hole | G1/2 |
Electrical
Voltage | AC100V~AC240V or DC24Vor AC24V |
Power | 15W |
Ambient
ZAFC001 | ZASC001 | |
Cooling way | Compressed air, | Circulate running water |
Temperate resist | -25 to +150℃ | 0 to +250℃ |
Cooling media |
Air Flow: 0.3-0.6m3/min, Temperature ≤35℃, pressure 0.1-0.2 MPa |
Water Flow: 0.3m3/h, Temperature ≤35℃, pressure ≥0.1MPa |
air output at the front of window | Support | Support |
General
Size | 356*138*158mm |
Housing inner size | 260*80*80mm (L*W*H) |
Weight | 5kg |
Mounted | wall, pole |
Wall bracket | ZAZ104B |
Drawings:
Other relative cooling type housing:
ZASC001 water cooling jacket ZAEC003 thermoelectric cooler jacket
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
