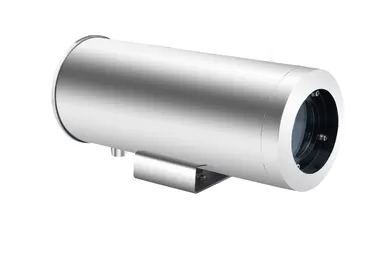

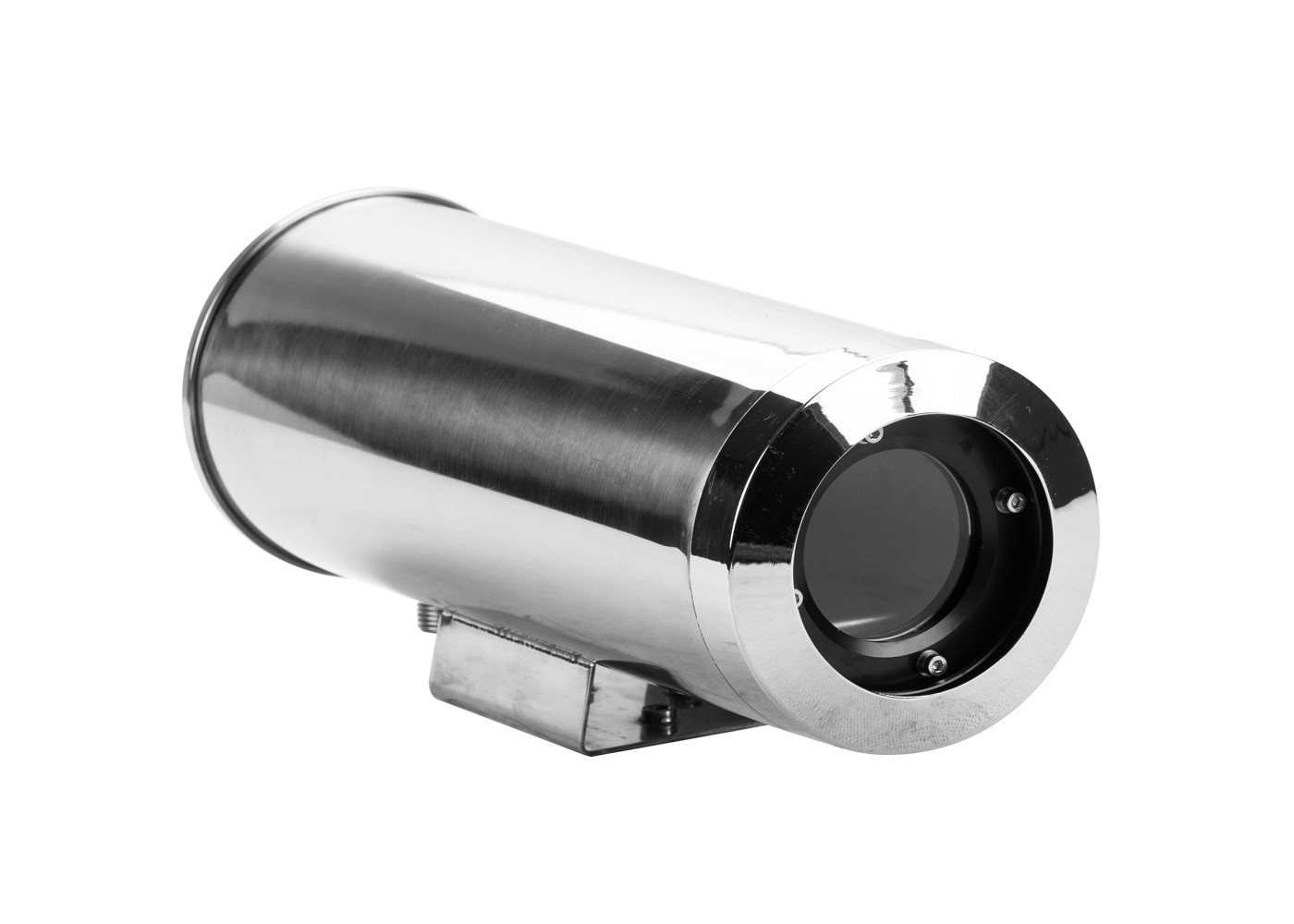

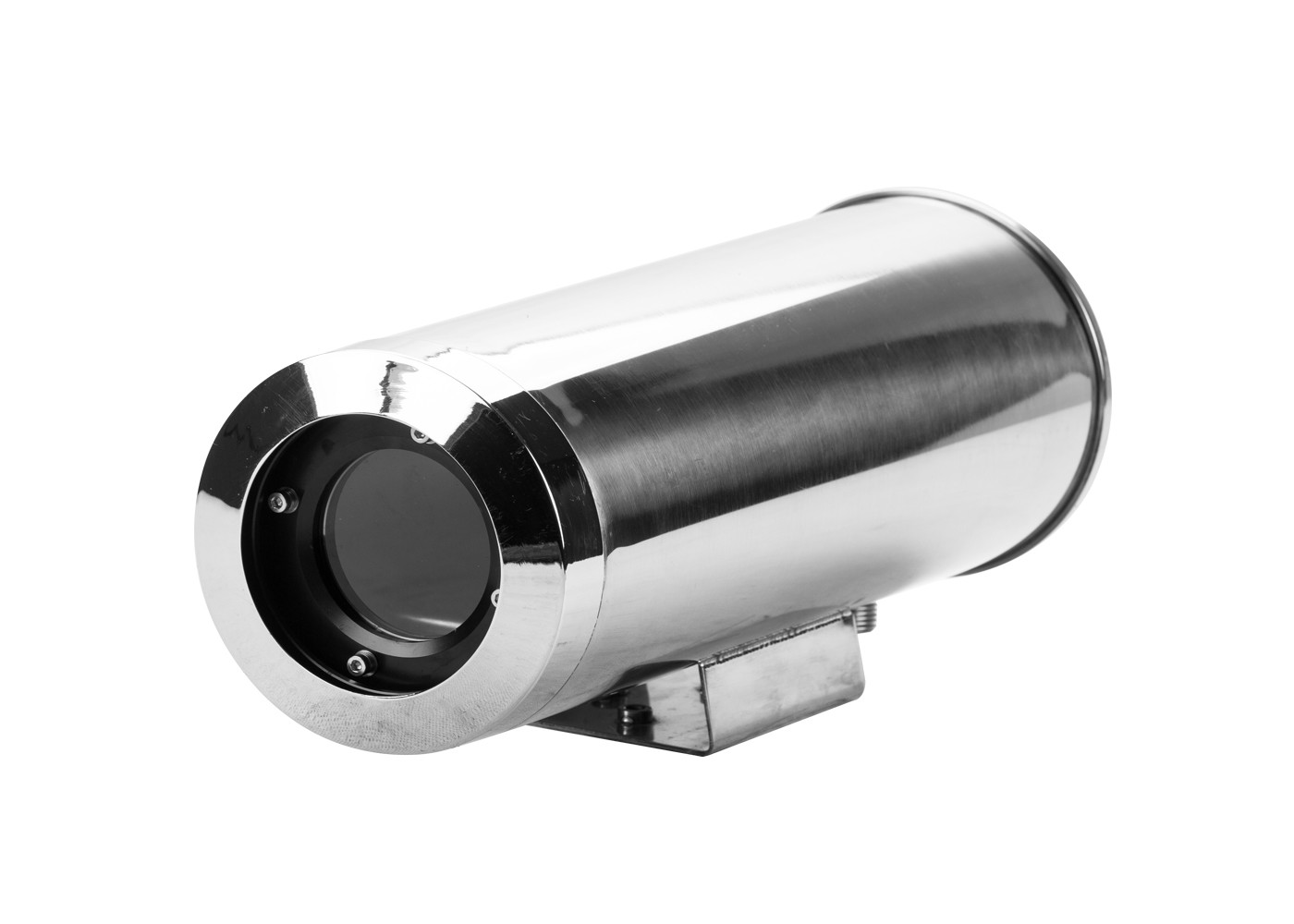

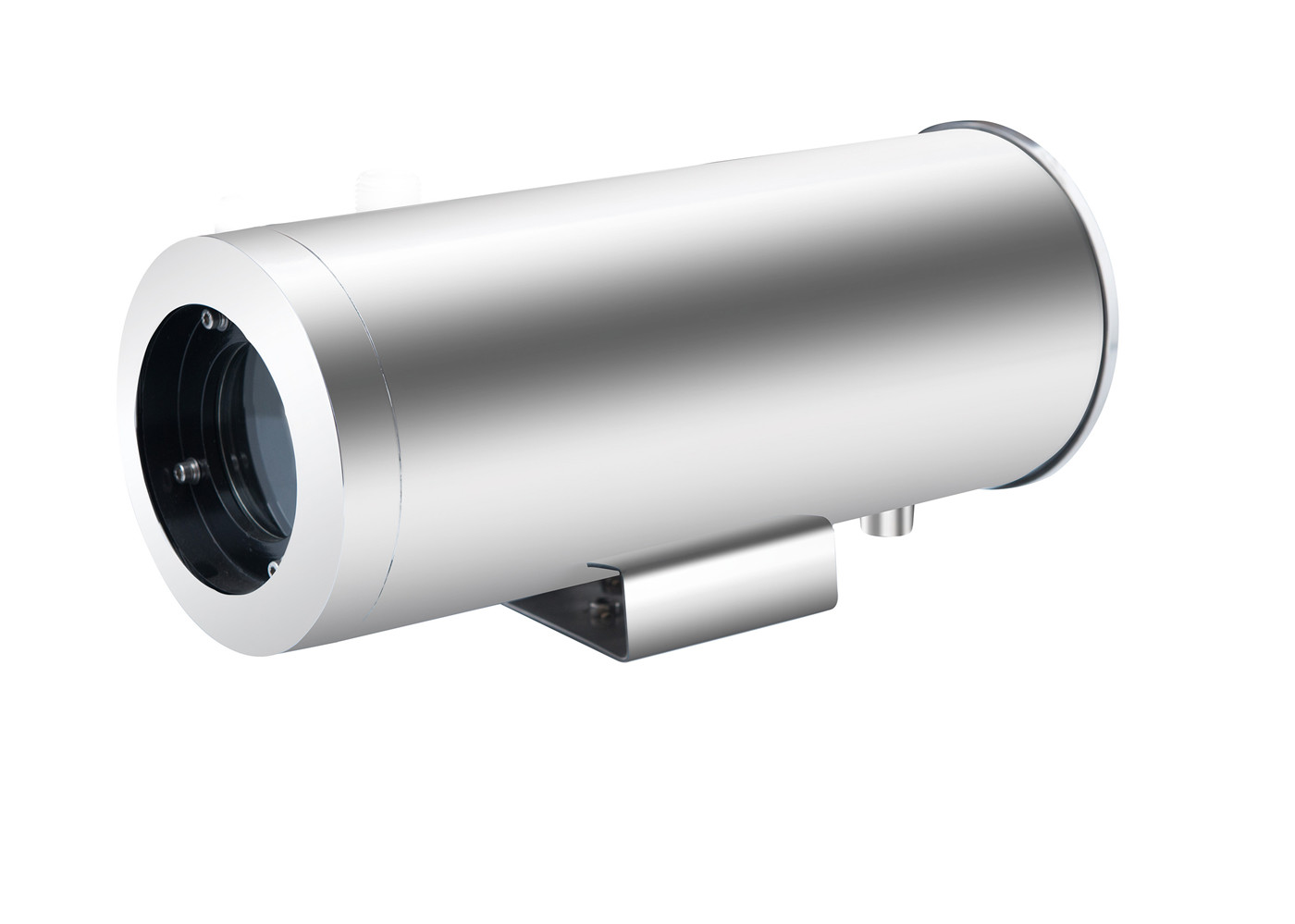

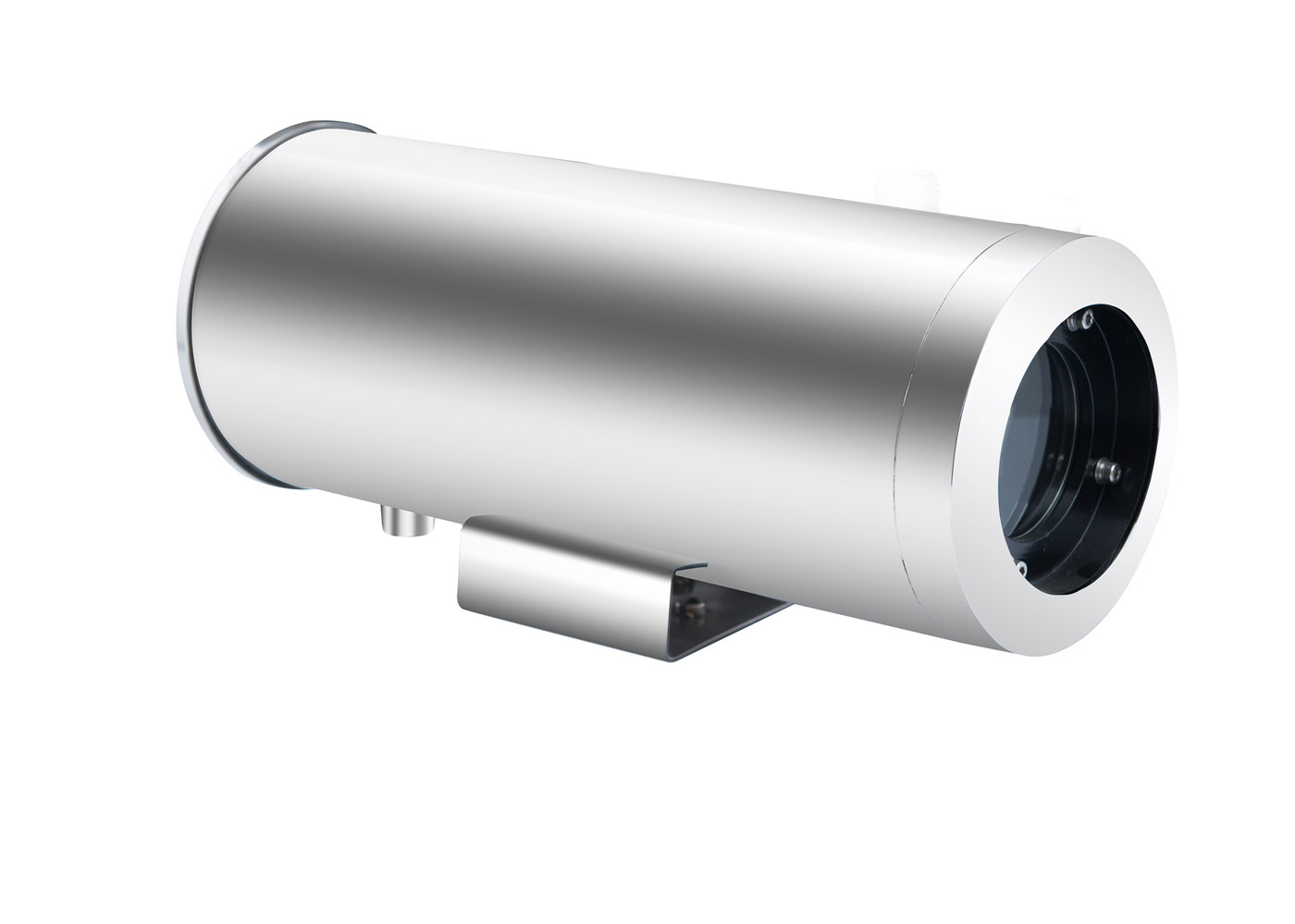

Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry

Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry

    • Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry
    • Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry
    • Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry
    • Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry
  • Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry

    Product Details:

    Place of Origin: Changzhou, China
    Brand Name: ZUOAN
    Certification: ISO9001
    Model Number: ZAFC001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: 300-550USD
    Packaging Details: firm carton
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30 pcs per week
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Cooling Media: Compressed Air
    Air Supply: 0.4-1.0L/s Usable Size: 260*80*80mm
    Dimension: 356*138*158mm Cable Hole: 2* G3/4 Gland
    Weight: 3.5kg Mounted: Wall, Pole
    Heat Resistant: -25~150°C

    Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry



    Summary:



    ZAFC001 is a commercial type air cooling heat resistant camera jacket, which housing is made of stainless steel 304 material.

    The jacket needs to connect with compressed air. The cooling air will do a circulation inside of housing, so as to keep the camera working in a safety operation temperature.

    ZAFC001 has an chamber for air pass by. Finally, the air will come out from the window glass, so as to make front window free of dust.

    ZAFC001 is designed for high temperature working place, such as steel plants, power industry, furnace, glass processing line, cement industry or rotary kiln.
    The air cooling jacket has usable area of 260*80*80mm, which can load zoom camera, varifocus box camera with lens. ZAFC001 can be mounted on wall bracket or pole.
    If the installation site don't has compressed air pipeline, client can choose our other type heat resist housing, such as ZASC001 water cooling heat resistant camera jacket, ZAEC003 thermoelectric cooler jacket.



    Air Cooling Heat Resist Jacket  Features:

    *Adopts two layers of stainless steel enclosure for high temperature resistant
    *Surface finish: electropolished or corrosion resistant paint finish
    *IP66
    *2 cable G3/4 glands
    *Tempered glass with nanometer paint film
    *Cooling way: compress air
    * temperature resist: -25 to 150 degree centigrade
    * inner size for camera:260*80*80mm
    * net weight:3.5Kg
    *applicable for the extreme circumstances with explosive gas or dust, like oven, furnace, steel mills, glass processing line.
    *installation: mount on wall or pole
    * can load various cameras, like SONY, SAMSUNG, HIKVISION, DAHUA, PELCO, BOSCH



    Air Cooling Heat Resist Jacket Applications:

    ZAFC001 can widely apply for  oven, furnace, steel mills, glass processing line, power industry, cement industry, rotary kiln, clinker cooler, burner, grate firing furnace, and waste combustion furnace.





    Data sheet download:



    ZAFC001,ZASC001 air water cooling camera housing d...



    Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power IndustryAir Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry



    Specification:



    Model ZAFC001
    Apply area furnace, steel mills factory, power factory, high temperature working area
    IP rated IP66
    power input AC85-265V, AC24V, DC12V, POE
    Material doubel layer of Stainless steel 201
    Cooling type compressed air
    air hole 1 set G1/2 or NPT1/2
    cable hole 2 sets G3/4 (or NPT3/4)
    Heat resist -25~150°C
    Netweight 3.5Kg
    Inner size for camera 260*80*80mm
    overall dimension     356*138*158mm





    Drawings:

    Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry



    Other relative cooling type housing:

    Air Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power IndustryAir Cooling 150 Degree Heat Resistant Camera Jacket, Housing for Power Industry

       ZASC001 water cooling jacket                  ZAEC003 thermoelectric cooler jacket
