| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | ISO9001 |
| Model Number: | ZASC001 |
| Minimum Order Quantity: | 1pcs |
| Price: | 300-550USD |
| Packaging Details: | firm carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 pcs per week |
| Material: | Stainless Steel | Cooling Media: | Circulating Water System |
|---|---|---|---|
| Water: | 3.78L/Hour | Usable Size: | 260*80*80mm |
| Dimension: | 356*138*158mm | Cable Hole: | 2* G3/4 Gland |
| Weight: | 3.5kg | Mounted: | Wall, Pole |
| Heat Resistant: | 0~250°C |
Water Cooling 250 Degree Heat Resistant Camera Jacket for High Temperature Area
Summary:
ZASC001 is a commercial type water cooling heat resist camera jacket, which housing is made of dual stainless steel 304 material.
When circulate water system passed by the cooling chamber, ZASC001 is featured as 250 degree heat resist for industrial aggressive area.
The jacket is needed to connect wth circulate running water. ZASC001, its front gland is needed to connect with compressed air to blow the front window. The water runnng inside of the housing, so as to keep the camera working in a safety operation temperature. The air will always blow out from the window glass, so as to keep the front window clean.
The ZASC001 water cooling jacket has usable area of 260*80*80mm, which can load zoom camera, varifocus box camera with lens. ZASC001 can be mounted on wall bracket or pole. If the installation site doesn't has running water or compressed air pipeline, client can choose our ZAEC003 thermoelectric cooler jacket.
The ZASC001 water cooling jacket can apply for high temperature area, such as oven, furnace, steel mills, glass processing line, power industry, cement industry, rotary kiln, clinker cooler, burner, grate firing furnace, and waste combustion furnace.
Clinets are welcomed to offer their brand camera to us. ZUOAN will offer free design and assembly service into our ZASC001 water cooling housing.
ZUOAN also has the explosion proof type water cooling housing for industry hazardous area purpose. more details, please contact with us directly.
Data sheet download:
ZAFC001,ZASC001 air water cooling camera housing d...

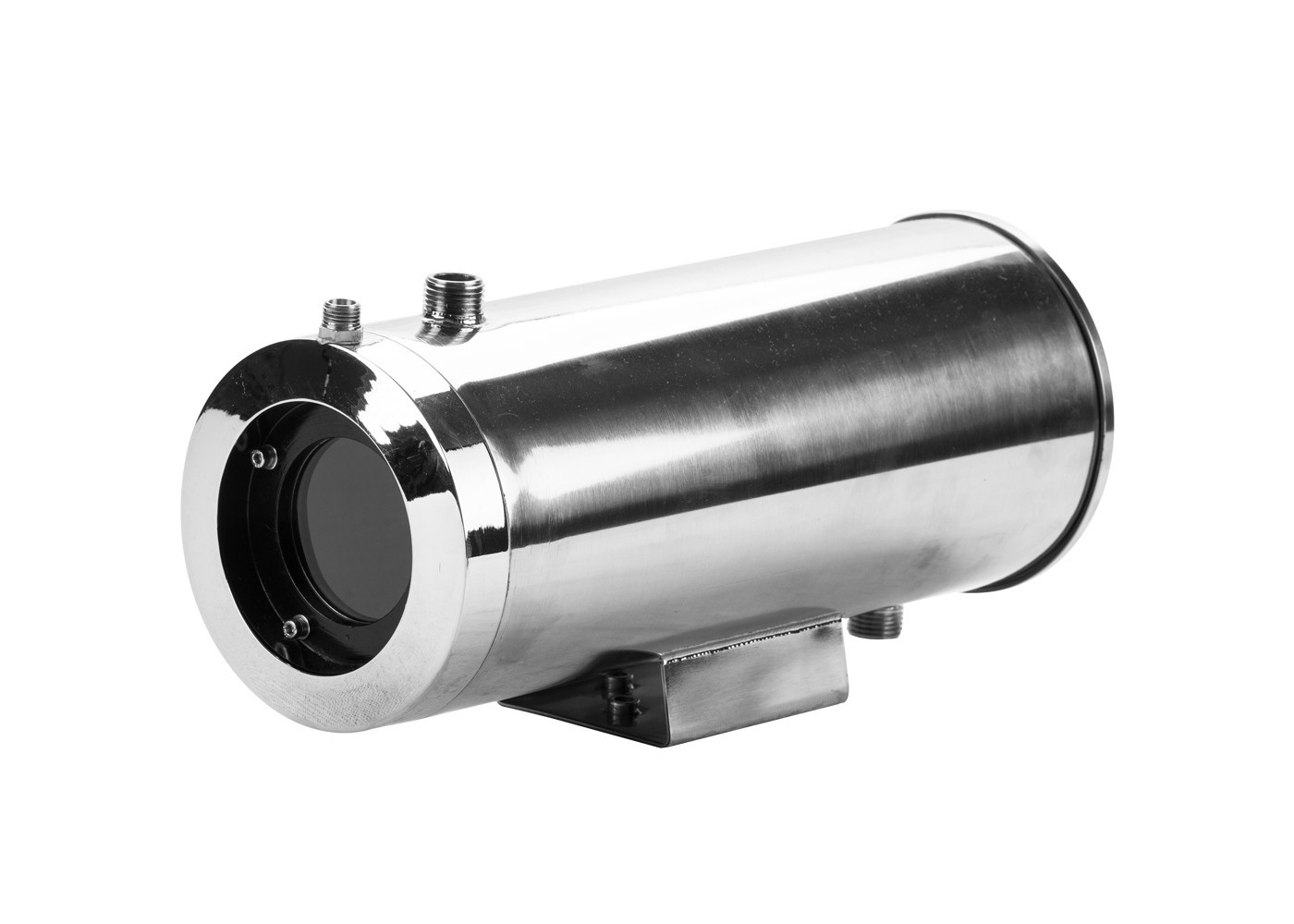

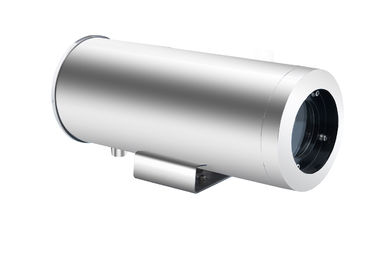

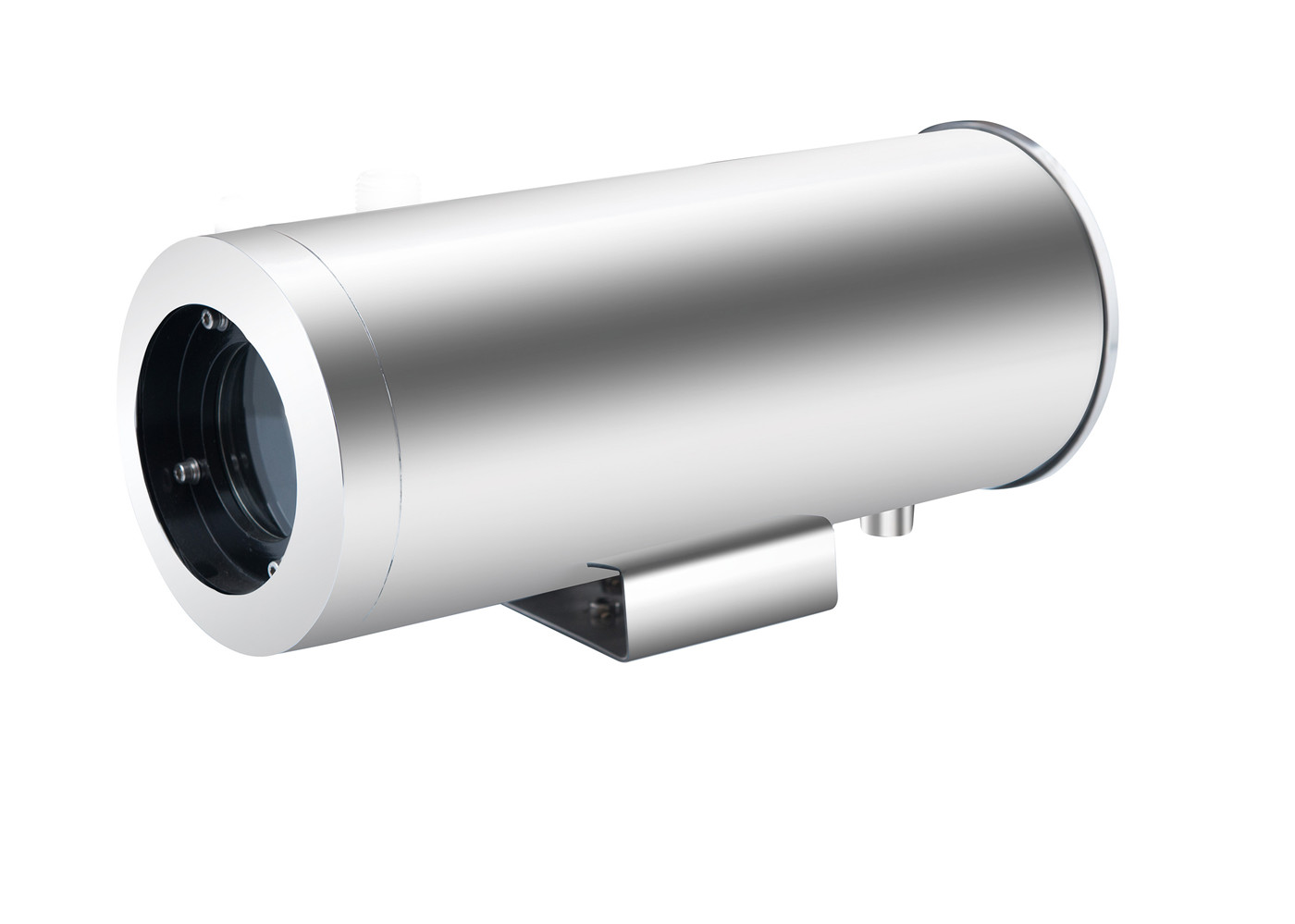

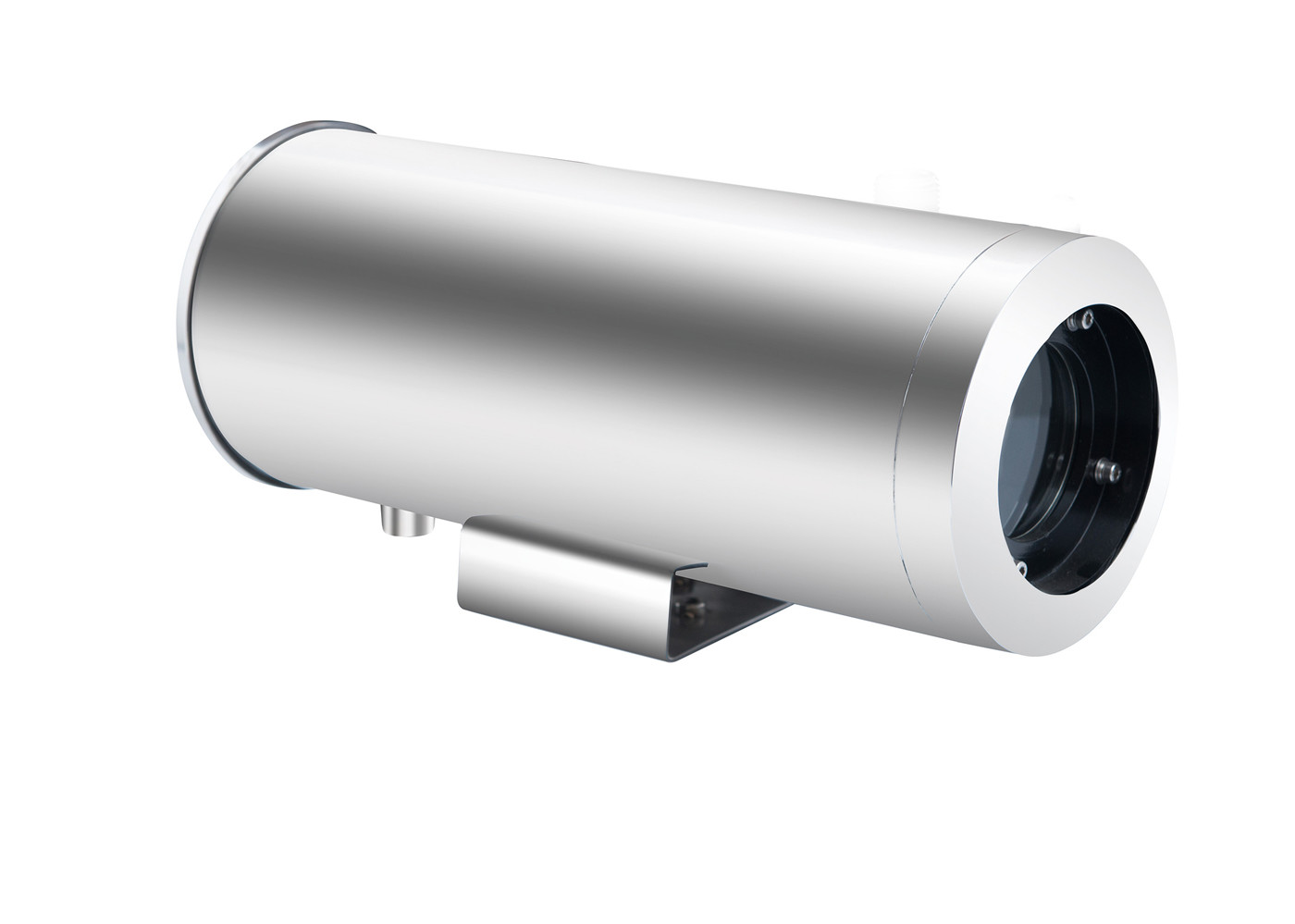

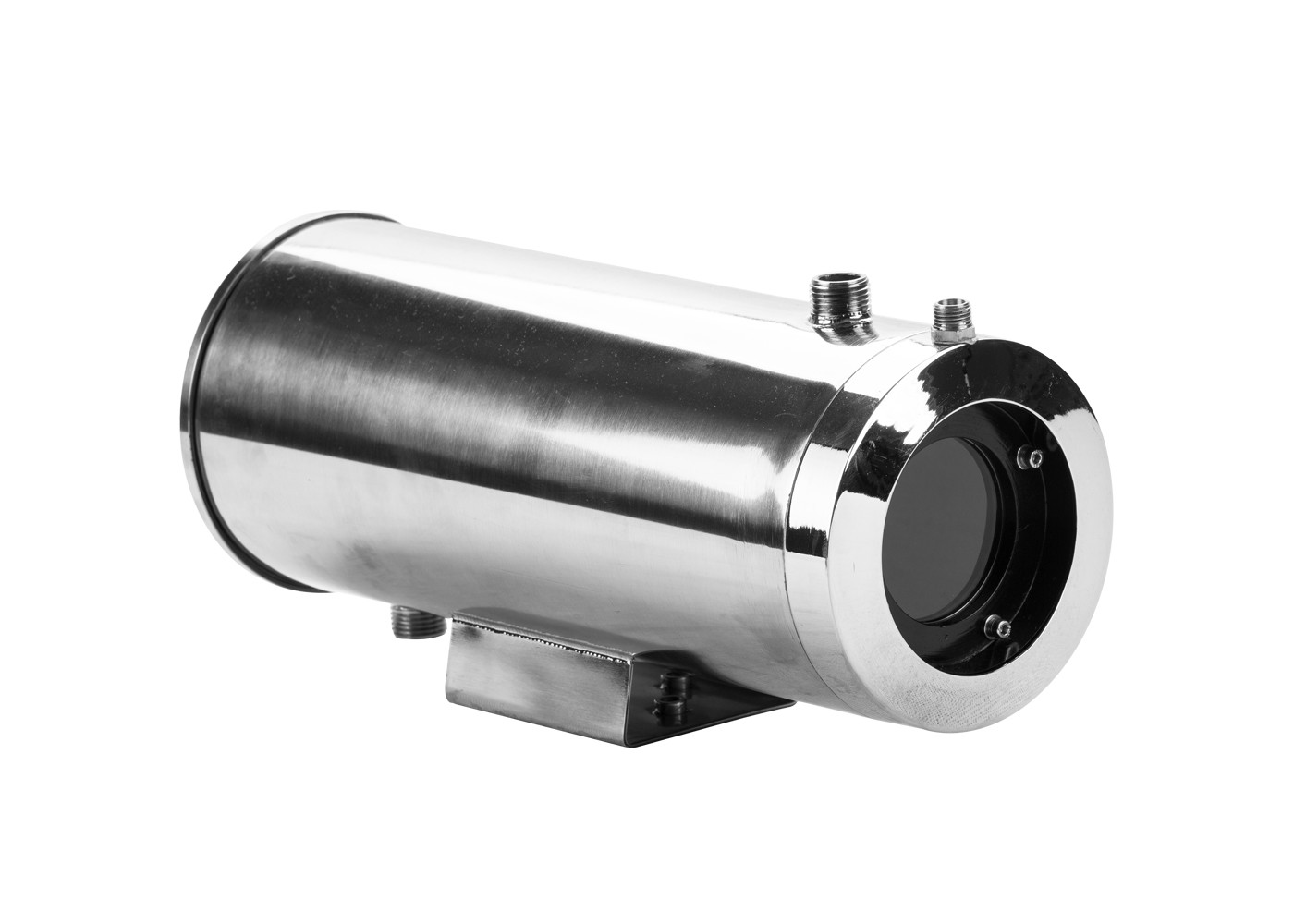

Details of ZASC001 water cooling housing photos :
Specification:
| Model | ZASC001 |
| Apply area | furnace, steel mills factory, power factory, high temperature working area |
| IP rated | IP66 |
| power input | AC85-265V, AC24V, DC12V, POE |
| Material | doubel layer of Stainless steel 304 |
| Cooling type | compressed water |
| air hole | 1 set G1/2 or NPT1/2 |
| cable hole | 2 sets G3/4 (or NPT3/4) |
| Heat resist | 0~250°C |
| Netweight | 3.5Kg |
| Inner size for camera | 260*80*80mm |
| overall dimension | 356*138*158mm |
Drawings:
Other relative cooling type housing:
ZAEC003 thermoelectric cooler jacket ZAFC001 air cooling jacket
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
