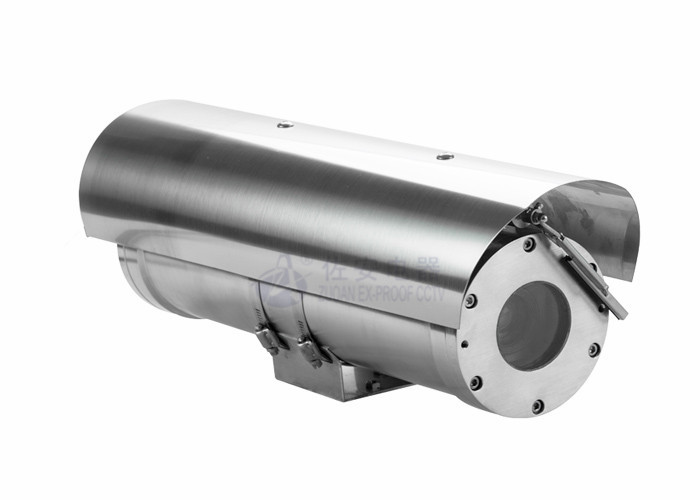

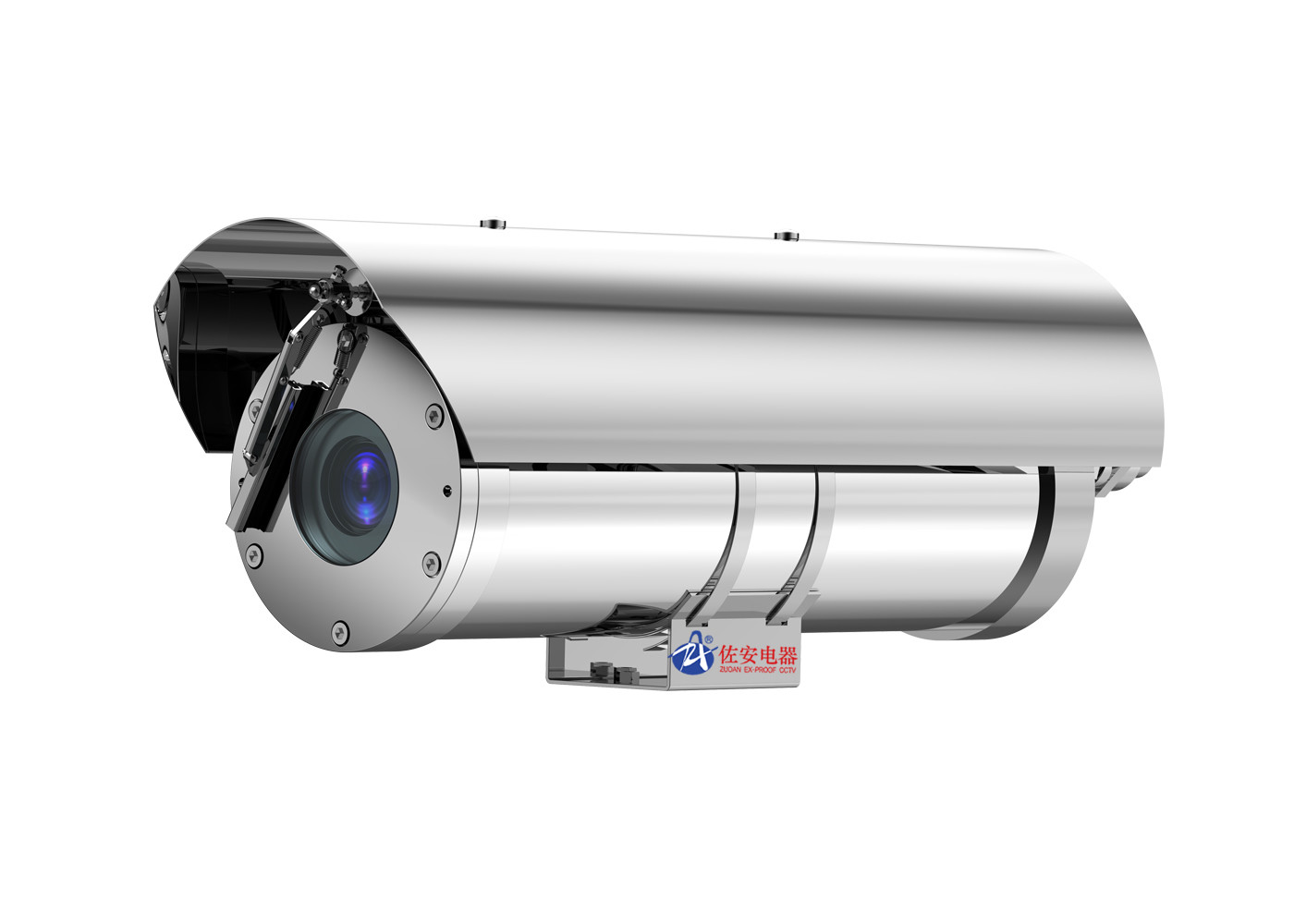

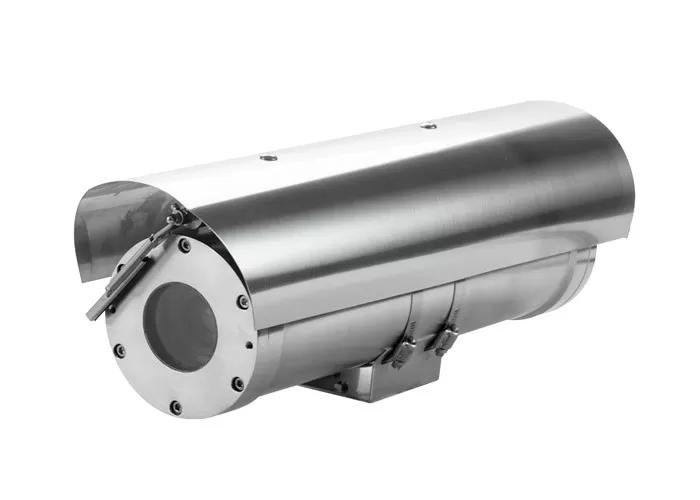

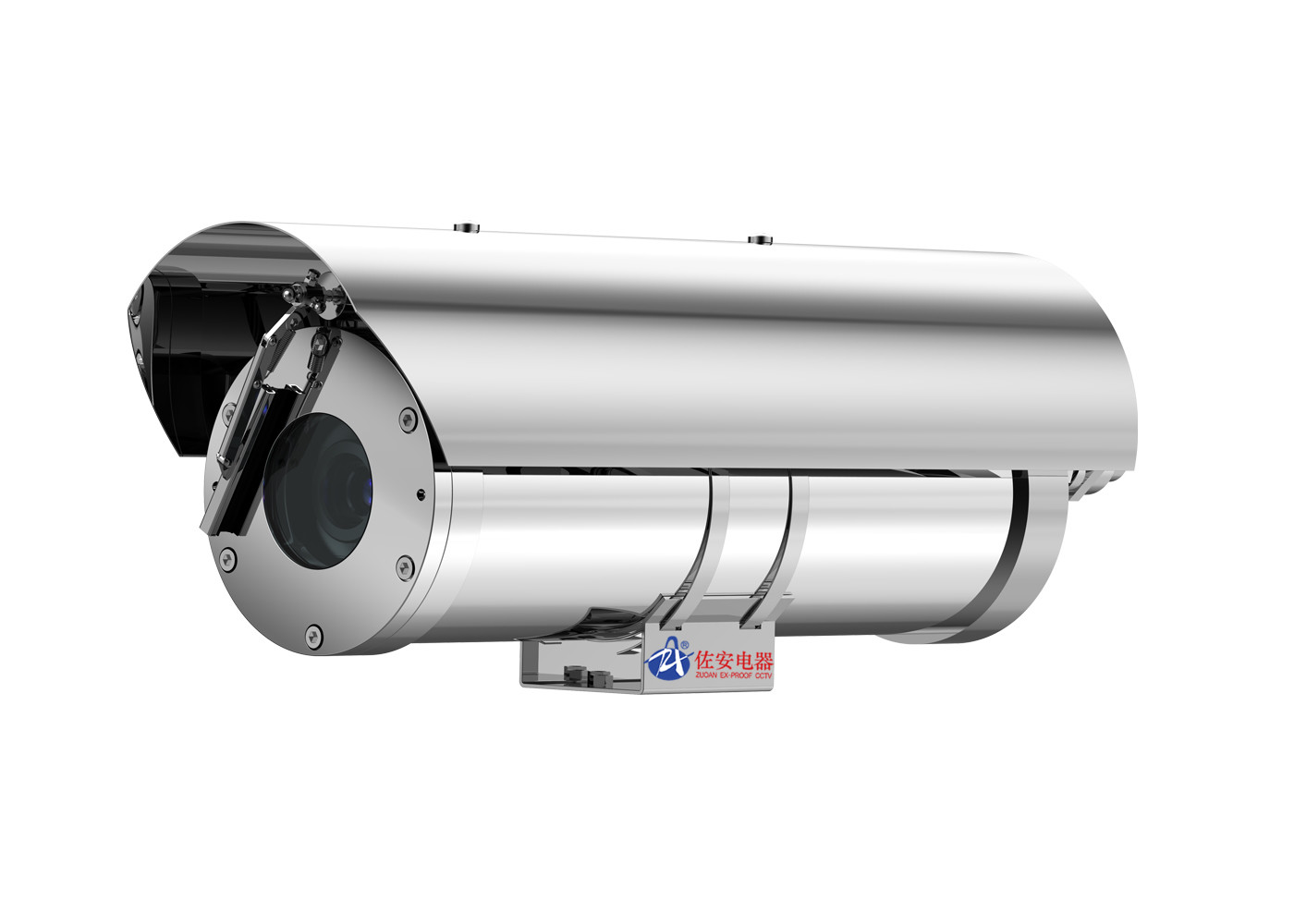

CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone

Basic Information
Place of Origin: Changzhou, China
Brand Name: ZUOAN
Certification: ATEX, IECEx, CNEx
Model Number: CZ100-A
Minimum Order Quantity: 1 pcs
Price: 1000USD
Packaging Details: Firm carton
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 set per month
Material: Stainless Steel 304, 316L Certification: ATEX, IECEx, CE
IP: IP68 Input Voltage: 100~240V AC Or 24V AC
Current: Max. 1.5A Wiper: Yes
Temperature: -40 ºC~+60 ºC Window Glass: Toughened Glass
Weight: 15.5kg Cable Entry: 2pcs
Camera: Box, Optical Zoom Camera Function: Wiper And Washing System Control

CZ100-A Explosion proof ATEX CCTV Camera With Wiper and Washing System For Hazardous Zone





Summary:



CZ100-A is Zuoan developted explosion proof ATEX CCTV camera. Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.



The ATEX CCTV camera enclosure, front flange and rear flange are all made of stainless steel 304 or 316L material. At the end of rear flange, there are 2* cable entries for camera and power cable thread by.



All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ100-A explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).



This ATEX CCTV Camera can catch clear images in low illuminance, the image signals of this camera can be converted to video signals or network signals. It will zoom in/out the lens and start/stop the wiper according to the command from the server.



The CZ100-A has bigger inner size for various camera, such as box camera, zoom camera, bullet camera with fixed lens.  Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into  this ATEX CCTV camera housing.





Service Condition:



Download :

CZ100 explosion proof ATEX CCTV Camera data sheet....





CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 0  CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 1





Specifications:



CZ100-A
Crust stainless steel 304/ 316L
Explosion proof marking

 CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 2 Ⅱ2G Ex db ⅡC T6 Gb,

 CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 2Ⅱ2D Ex tb ⅢC T80 ºC Db

Explosion proof certification ATEX, IECEx, CE
Standards

EN60079-0: 2012+A11: 2013,

EN60079-1: 2014, EN60079-31: 2014

IEC60079-0: 2011, IEC60079-1: 2014,

IEC60079-31: 2013

Hazardous Area

zone 1, 2

(IIA, IIB, IIC, T1~T6 gases, vapors and air may exist)

zone 20, 21

(explosive dust may exist)

IP rated IP68 (1.2m/45min)

Atmosphere pressure

80~110kPa

Relative humidity

no more than 95% (+25ºC)

Power input AC100-240V, or  AC24V
cable output 2 cable entries
Window glass Strong temperared glass
working temperature

-40°C~60°C

Netweight 15.5Kg
Overall dimension 524*179*215mm
accessory wiper, sunshiled
camera all brand analogue and network camera









CZ100-A ATEX CCTV Camera Drawings:



CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 4

CZ100 ATEX CCTV Camera Accessories:

CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 5CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 6CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 7

             wall bracket                           mount adapter                    Ex flexible tube







ZAPL ATEX Certified Washing Tank System

CZ100-A Explosion proof ATEX CCTV Camera with Wiper, Washing System For Hazardous Zone 8









Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
