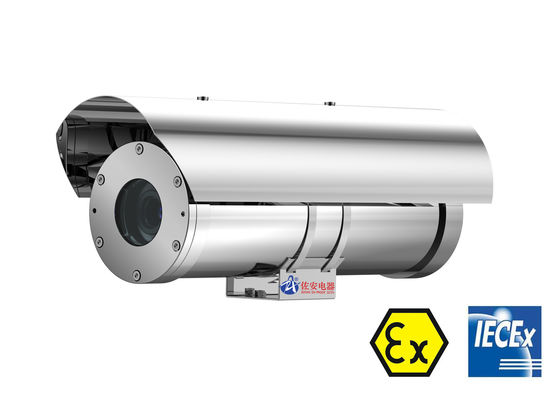

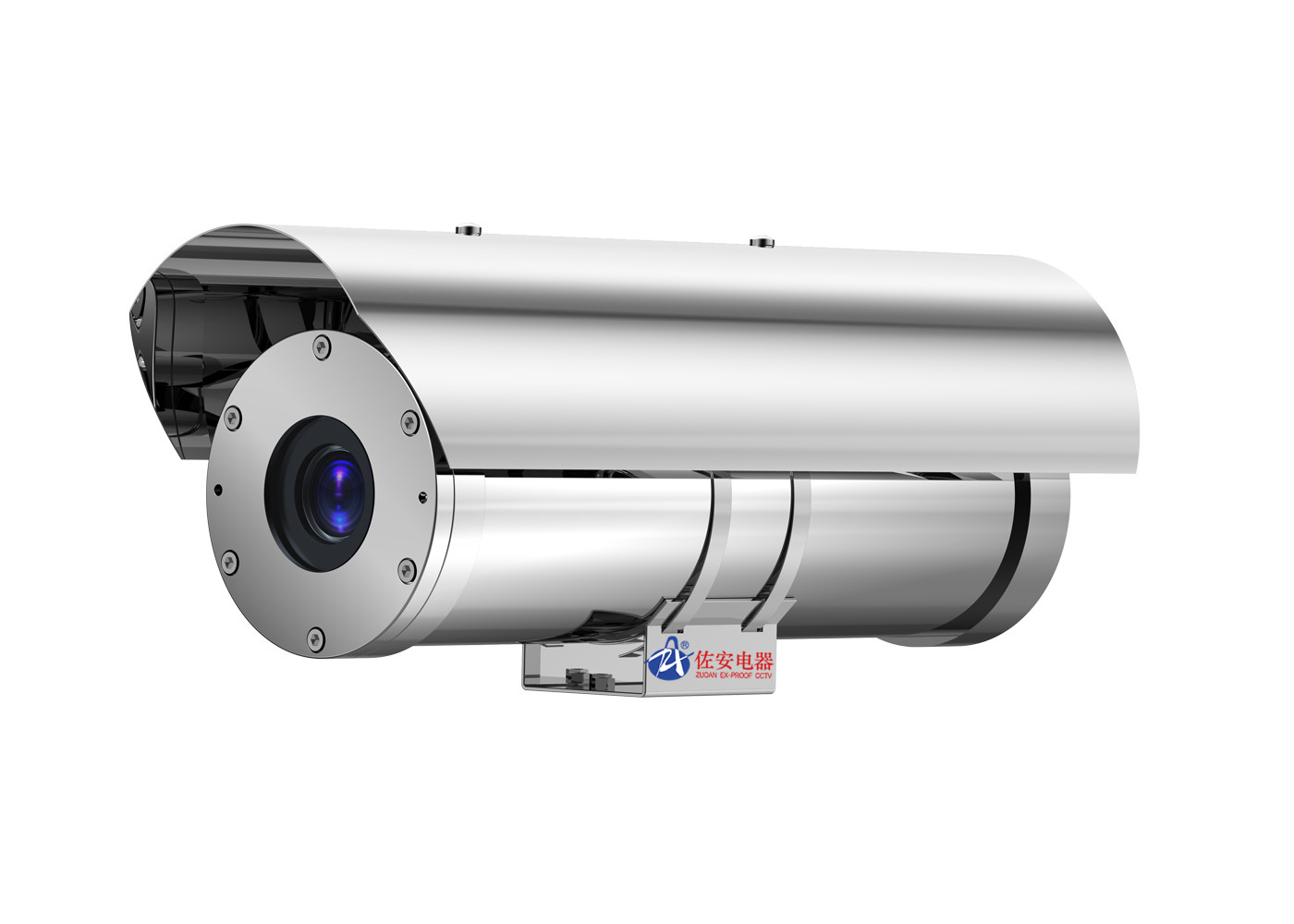

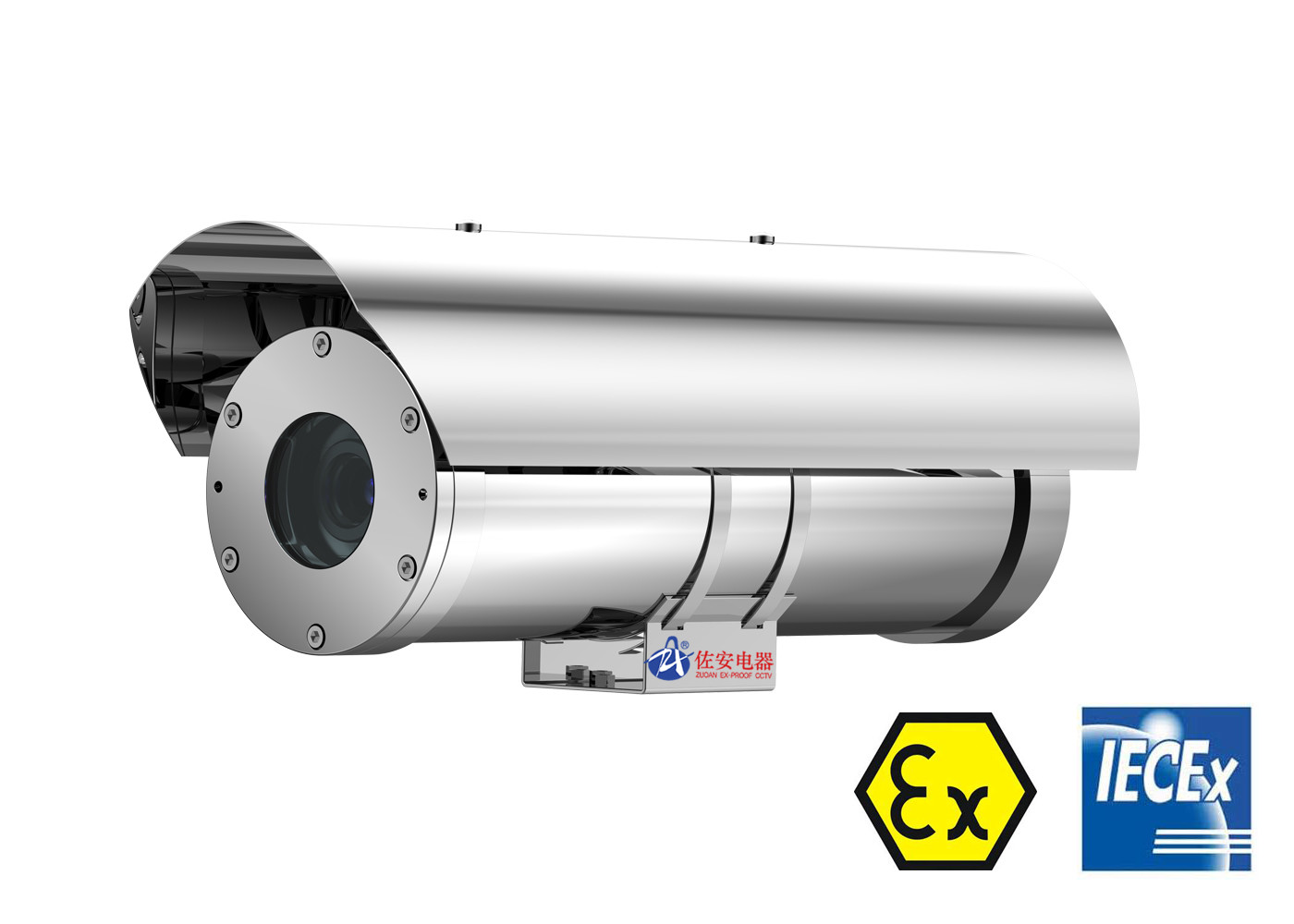

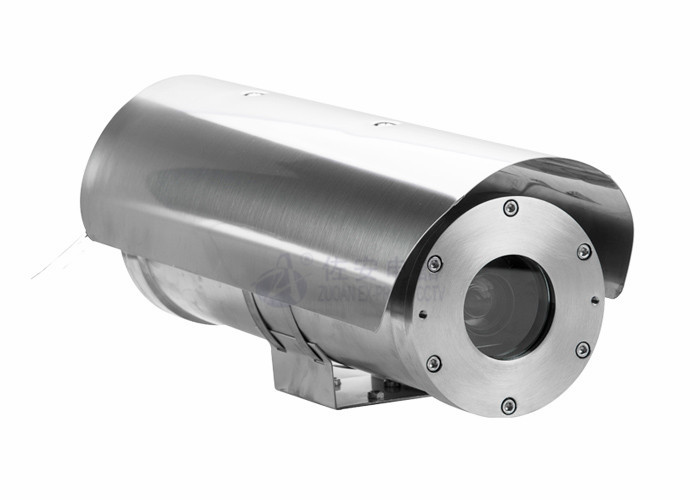

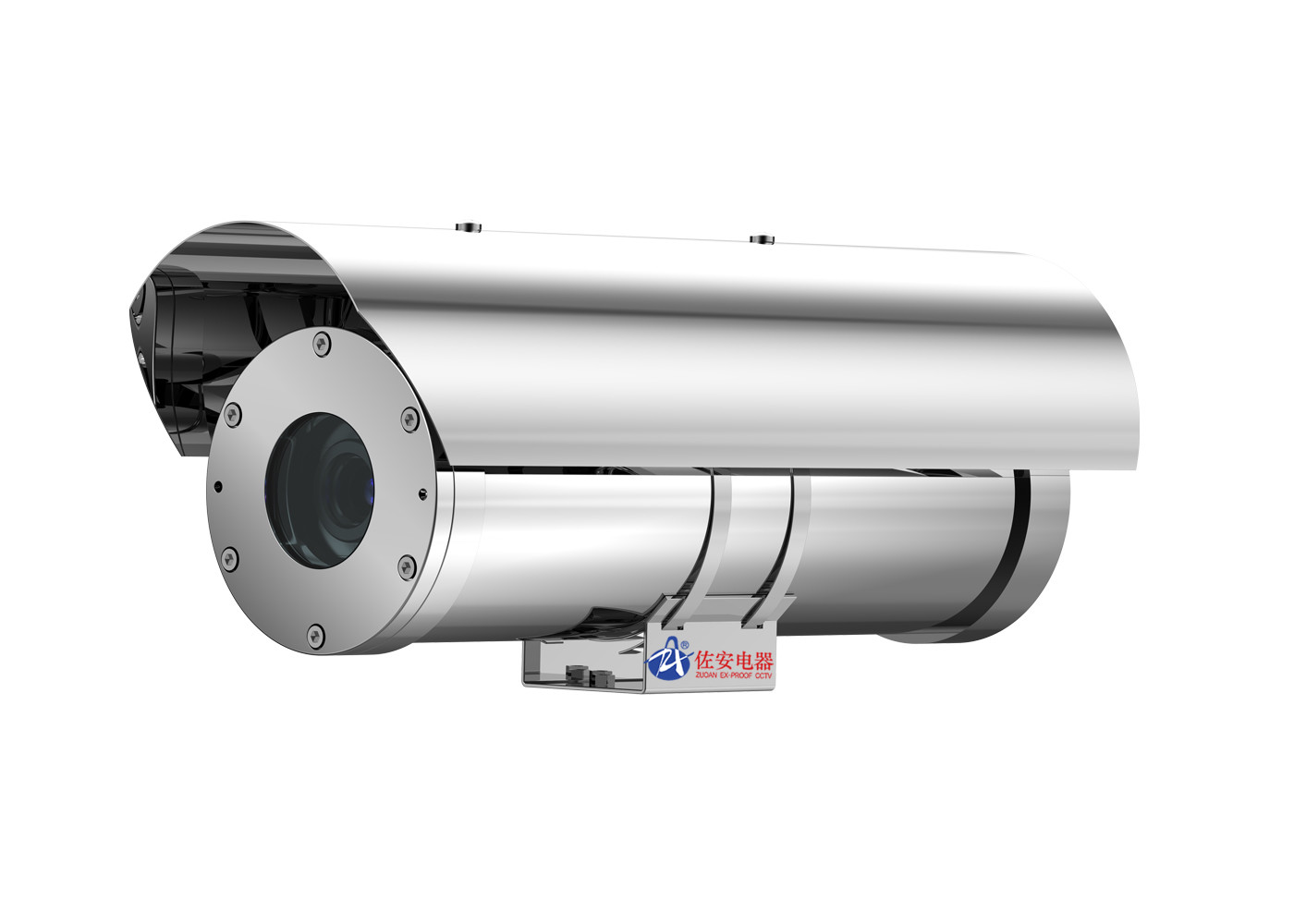

CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone

CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone

    • CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone
    • CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone
    • CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone
    • CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone
  • CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone

    Product Details:

    Place of Origin: Changzhou, China
    Brand Name: ZUOAN
    Certification: ATEX, IECEx, CNEx
    Model Number: CZ100-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: 1000USD
    Packaging Details: Firm carton
    Delivery Time: 5-8 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000 set per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304, 316L Certification: ATEX, IECEx, CE
    IP: IP68 Input Voltage: 100~240V AC Or 24V AC
    Current: Max. 1.5A Sunshade: Support
    Temperature: -40 ºC~+60 ºC Window Glass: Toughened Glass
    Weight: 15.5kg Cable Entry: 2pcs
    Camera: Box, Optical Zoom Camera Function: Wiper And Washing System Control

    CZ100-B Explosion proof ATEX CCTV Camera With Sunshade For Hazardous Zone





    Summary:



    CZ100 series is Zuoan developted explosion proof ATEX CCTV camera. Explosion-proof Camera is ATEX and IECEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.



    The ATEX CCTV camera enclosure, front flange and rear flange are all made of stainless steel 304 or 316L material. At the end of rear flange, there are 2* cable entries for camera and power cable thread by.



    All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The CZ100-A explosion proof ATEX CCTV camera ingress protection level also reach to IP68(1.2m/45min).



    This ATEX CCTV Camera can catch clear images in low illuminance, the image signals of this camera can be converted to video signals or network signals. It will zoom in/out the lens and start/stop the wiper according to the command from the server.



    The CZ100  has bigger inner size for various camera, such as box camera, zoom camera, bullet camera with fixed lens.  Client are all welcomed to offer your brand camera tous. We also perfer assembly client camera into  this ATEX CCTV camera housing.





    Service Condition:



    • Atmosphere pressure: 80~120kPa
    • Ambient temperature: -40 ºC~+60 ºC
    • Relative humidity: no more than 95% (+25ºC);

    Download :

    CZ100 explosion proof ATEX CCTV Camera data sheet....





    CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone  CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone





    Specifications:



    CZ100-B
    Crust stainless steel 304/ 316L
    Explosion proof marking

     CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone Ⅱ2G Ex db ⅡC T6 Gb,

     CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous ZoneⅡ2D Ex tb ⅢC T80 ºC Db

    Explosion proof certification ATEX, IECEx, CE
    Standards

    EN60079-0: 2012+A11: 2013,

    EN60079-1: 2014, EN60079-31: 2014

    IEC60079-0: 2011, IEC60079-1: 2014,

    IEC60079-31: 2013

    Hazardous Area

    zone 1, 2

    (IIA, IIB, IIC, T1~T6 gases, vapors and air may exist)

    zone 20, 21

    (explosive dust may exist)

    IP rated IP68 (1.2m/45min)

    Atmosphere pressure

    80~110kPa

    Relative humidity

    no more than 95% (+25ºC)

    Power input AC100-240V, or  AC24V
    cable output 2 cable entries
    Window glass Strong temperared glass
    working temperature

    -40°C~60°C

    Netweight 15.5Kg
    Overall dimension 524*179*215mm
    accessory wiper, sunshiled
    camera all brand analogue and network camera









    CZ100-B ATEX CCTV Camera Drawings:

    CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone



    CZ100 ATEX CCTV Camera Accessories:

    CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous ZoneCZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous ZoneCZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone

                 wall bracket                           mount adapter                    Ex flexible tube







    ZAPL ATEX Certified Washing Tank System

    CZ100-B Explosion proof ATEX CCTV Camera with Sunshade For Hazardous Zone









    Special order/ requirements

    Contact us for special requirements, Email: info@exproofcctv.com
