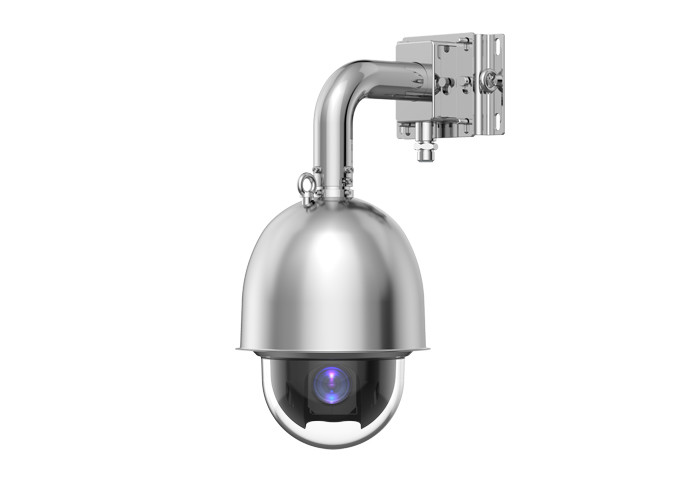

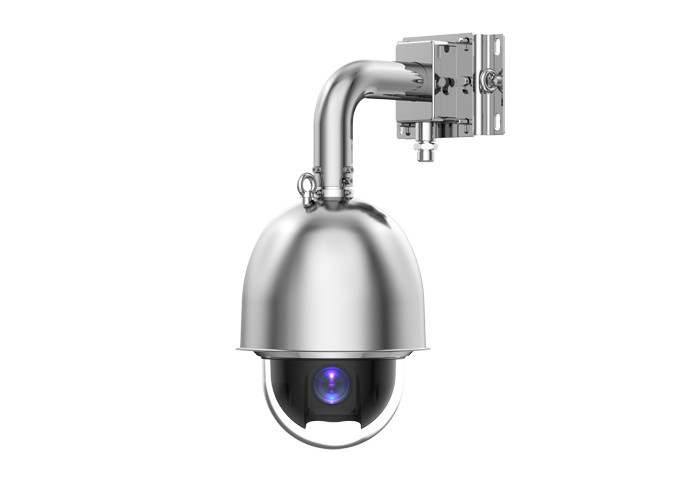

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera

Brand Name: ZUOAN
Model Number: CZ637-65F233
MOQ: 1 unit
Price: USD 2000-3000 per unit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 units per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ATEX, IECEx
Certificate:
ATEX, IECEx Certified
Ex-Mark:
Ex Ⅱ 2 G Ex Db ⅡC T6 Gb /Ex Ⅱ 2 D Ex Tb ⅢC T80 ºC Db
Apply Zone:
Gas Zone 1, Zone 2; Dust Zone 21, Zone 22
Material:
SUS316L
Weather Proof:
IP68
Camera:
2MP 33X
Focal Length:
5.8-191.4mm
Min. Illumination:
Color: 0.001Lux@F1.5, B/W: 0.0001Lux@F1.5
Power Supply:
AC24V, PoE+(802.3at)
Power:
Less Than 75W
Pan:
0°–360°
Tilt:
-20°–+90°
Pan Speed:
0.1°/s–300°/s
Tilt Speed:
0.1°/s–150°/s
Presets:
300
Ambient Temperature :
-40ºC～+60ºC
Cable Entry:
M27*1.25 Or M25*1.5
Sunshade:
Support
Weight:
20kg
Mount Type:
Wall Bracket, Ceiling Mount
Packaging Details:
1 unit into one carton box, box dimension: 51*51*58.5cm
Product Description

CZ637-□ Series ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera



ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 0

  • Introduction:

CZ637-□ series 6-inch Explosion-proof speed dome camera (hereinafter referred to as camera) is a new generation of Explosion-proof monitoring device, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the product quality, performance and appearance are in leading position. The product can be used in flammable and explosive gas or flammable dust environment, to achieve the purpose of monitoring the hazardous area.


  • Certification:

The 6-inch Explosion proof speed dome camera is designed and manufactured according to EN IEC60079-0:2018, EN60079-1: 2014, EN60079-28: 2015, EN60079-31: 2014, IEC60079-0: 2017, IEC60079-1: 2014, IEC60079-28: 2015, IEC60079-31: 2013. The compact structure, small size make it convenient for installation and maintenance. It’s applicable for petrol industry, chemical industry, wharf, harbor, non-coal mine, aerospace industry, aircraft industry, military industry, food processing industry and so on.


  • Application:

This 6-inch explosion proof speed dome camera is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist.



  • Features:

  1. ATEX, IECEx certified
  2. water and dust resistance IP68 rated
  3. High quality imaging with 2MP resolution
  4. 1/1.8" progressive scan CMOS
  5. Min illumination: Color: 0.001Lux@F1.5, B/W: 0.0001Lux@F1.5
  6. 33X optical zoom, focal length 5.8-191.4mm
  7. 360° Pan,  -20° to +90° Tilt
  8. Ultra 265, H.265, H.264, MJPEG video compression
  9. Support AC24V, PoE+ power supply
  10. 3D DNR and low bitrate technology delivers clean and sharp images
  11. True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
  12. Support wall mount and Ceiling mount way









Certificate

Certificate Mark

(with optical fiber output version)

Ex Ⅱ 2 G Ex db op pr ⅡC T6 Gb

 Ex Ⅱ 2 D Ex tb op pr ⅢC T80 ºC Db

(without optical fiber output version)

Ex Ⅱ 2 G Ex db ⅡC T6 Gb

 Ex Ⅱ 2 D Ex tb ⅢC T80 ºC Db
Standards

EN IEC60079-0:2018, EN60079-1:2014, EN60079-28:2015,

EN60079-31:2014 , IEC60079-0:2017, IEC60079-1:2014,

IEC60079-28:2015, IEC60079-31:2013
Certificates CNEX 19 ATEX 0038X, IECEx CNEX 19.0028X



Mechanical

Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 1pcs M27×1.25 or M25×1.5
Wiper No
sunshade Support

Electrical

Voltage

AC24V ± 25% or POE+ (802.3at)
Power Less than 75W

Ambient

Ambient temperature -40ºC～+60ºC
Air pressure 80～110kPa
Relative Humidity ≦95% (no condensation) @25℃

Pan & Tilt

Pan 360° endless
Tilt -20 to 90°
Speed Horizontal 0.1-300°/s, Vertical 0.1-150°/s
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Tour 8 (up to 32 presets per tour)
Resume function Support
Auto Cruise Support
Auto Scan Support

Camera

Image Sensor 1/1.8" progressive scan, 2.0 megapixel, CMOS
Frame rate

Main stream: 2MP (1920x1080), Max. 30fps

Sub stream: 2MP (1920x1080), Max 30fps

Third Stream: D1 (720X576), max 30fps
Min. Illumination Color 0.001Lux/F1.5 B/W: 0.0001Lux/F1.5
Shutter Time Auto/ Manual, 1sec~ 1/3,0000 sec
Iris Auto/Manual F1.5~F4.8
Day&Night Auto ICR
Digital noise reduction 2D/3D DNR
S/N Ratio More than 52dB
Defog Digital Defog
WDR 120dB
Support White balance, auto gain control
Privacy Masking Up to 24 areas

Lens

Focal Length 5.8-191.4mm, 33X optical
Aperture Range F1.5-F4.8
Angle of View H: 60.1-3.2°; V:35.3-1.8°; D:67.9-3.7°
DORI distance Detect Observe Recognize Identify

1655m

(5429.80ft)

622m

(2040.68ft)

331m

(1085.96ft)

165m

(541.34ft)

Artifical Intelligence

Video Meta data

Support human, motor Vehicle and non-motor Vehicle image capture
Perimeter Protection Tripwire and intrusion, Support alarm triggering by target types(human and vehicle), Support filtering false alarms caused by animals, rustling leaves, bright lights, ect
SMD Plus Support
Auto tracking Support
Face Detection Support

General Intelligence

Event Trigger

Motion detection, video tampering, Scene changing,

Network disconnection, IP address conflict, illegal access, and storage anomaly.
General IVS Object Abandoned/ Missing



Network

Network Interface 1pcs of RJ45, support 10M/100M
Video Compression Ultra 265, H.265, H.264, MJPEG
Audio Compression G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2
Voice Intercom Support
Stream Support three streams
Internet Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Time Display Support
Compatible Integration ONVIF( profile S, profile s&G), CGI
Security Password protection, Multiple access control
Optional Audio in 1(LINE IN; bare wire)
Optional Aduio out 1(LINE OUT; bare wire)
Optional 7/2

Control

Camera address on/off (0-254)
Focus Mode Auto/Manual/One touch
Gain off/ lower/ higher
Slow shutter X256 MAX
White Balance Auto white balance 1/auto white balance 2/Manual/auto
Private Off/ Mode 1/ Mode 2
Video 3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoom X16
Zoom display on/off
ZCF control mode mode 1, mode 2

General

Cable integrated cable
Size 282.5*282.5*408.1mm
Weight 20kg
Mounted wall, ceilling
Wall bracket ZAZ637-B (standard)
Ceiling mounted bracket  ZAZ637-D
Sunshield optional
Safety hook supported





Dimension

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 1

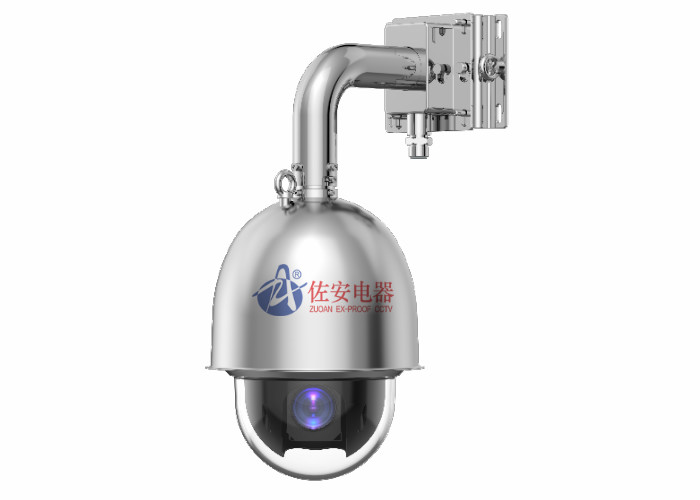

Wall Bracket

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 2 ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 3

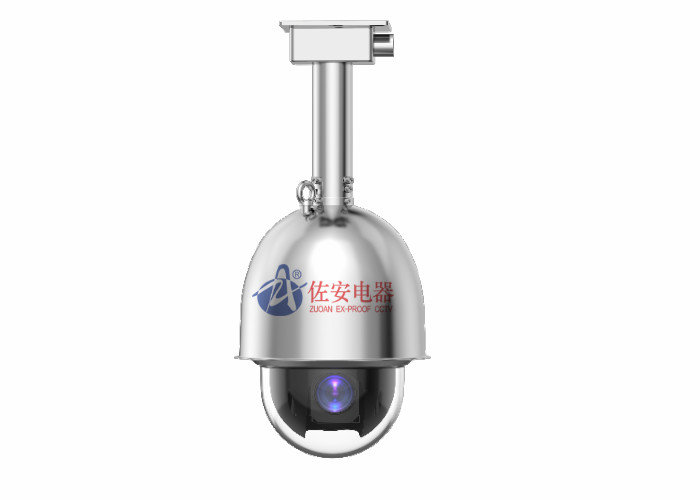

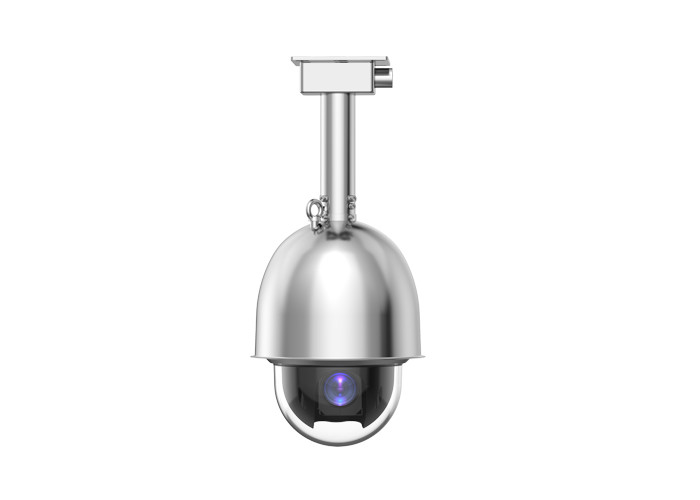

Ceiling Mount Bracket

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 4ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 5







CZ637 Installation Way:

ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 6ATEX, IECEx certified 6-inch 2MP 33X Explosion Proof Network PTZ Speed Dome Camera 0



Download CZ637 Data Sheet:

CZ637 ATEX, IECEx 6-inch 2MP 33X Explosion proof S...
