ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera

ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera

    • ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera
    • ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera
    • ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera
    • ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera
  • ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: ATEX, IECEx
    Model Number: CZ6354-50232

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD 2000-3000 per unit
    Packaging Details: 1 unit into one carton box, box dimension: 42*42*60cm
    Delivery Time: 14 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100 units per month
    Contact Now
    Detailed Product Description
    Certificate: ATEX, IECEx Ex-Mark: Ex Ⅱ 2 G Ex Db ⅡC T6 Gb /Ex Ⅱ 2 D Ex Tb ⅢC T80 ºC Db
    Apply Zone: Gas Zone 1, Zone 2; Dust Zone 21, Zone 22 Material: SUS316L
    Weather Proof: IP66, IP68 Camera: 2MP 32X
    Focal Length: 4.9 Mm–156 Mm Min. Illumination: Color: 0.005 Lux@F1.35;B/W: 0.0005 Lux@F1.35
    Power Supply: DC24V,PoE+ (802.3at) Power: Max 16W
    Pan: 0°–360° Tilt: 0°–+90°
    Pan Speed: 0.1°/s–350°/s Tilt Speed: 0.1°/s–250°/s
    Presets: 300 Ambient Temperature Ambient Temperature : -40ºC~+60ºC
    Cable Entry: M27*1.25 Or M25*1.5 Sunshade: Support
    Weight: 13.5kg (without Bracket) Mount Type: Wall Bracket, Ceiling Mount

    CZ6354-□ Series ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera

    ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera



    • Introduction:

    CZ6354-□ series 5-inch Explosion-proof speed dome camera (hereinafter referred to as camera) is a new generation of Explosion-proof monitoring device, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the product quality, performance and appearance are in leading position. The product can be used in flammable and explosive gas or flammable dust environment, to achieve the purpose of monitoring the hazardous area.

    • Certification:

    The 5-inch Explosion proof speed dome camera is designed and manufactured according to EN IEC60079-0:2018, EN60079-1: 2014, EN60079-28: 2015, EN60079-31: 2014, IEC60079-0: 2017, IEC60079-1: 2014, IEC60079-28: 2015, IEC60079-31: 2013. The compact structure, small size make it convenient for installation and maintenance. It’s applicable for petrol industry, chemical industry, wharf, harbor, non-coal mine, aerospace industry, aircraft industry, military industry, food processing industry and so on.

    • Application:

    This 5-inch explosion proof speed dome camera is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist.


    • Features:

    1. ATEX, IECEx certified
    2. water and dust resistance both IP66 and IP68(2m/2h) rated
    3. Certified for the latest standards IEC/EN60079
    4. Stainless steel 304 or 316L enclosure
    5. High quality imaging with 2MP resolution
    6. 1/2.8" progressive scan CMOS
    7. Min illumination: Color: 0.005Lux@F1.5, B/W: 0.0005Lux@F1.5
    8. 32X optical zoom, focal length 4.9-156mm
    9. 360° Pan, 0° to +90° Tilt
    10. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
    11. Support DC24V, PoE+ power supply
    12. All-in-one solution for capturing long distance video surveillance for outdoor applications
    13. Start-light technology fits for dark, low-light applications
    14. True WDR for applications with direct sunlight or glare.
    15.            Automatically filters out false alarms caused by animals, rustling leaves, bright lights.

    16. Support wall mount and Ceiling mount way
    17. Optical fiber output version available



    Certificate

    Certificate Mark

    With optical fiber:

    Ex Ⅱ 2 G Ex db op pr ⅡC T6 Gb

    Ex Ⅱ 2 D Ex tb op pr ⅢC T80 ºC Db

    Without optical fiber:

    Ex  Ⅱ 2 G Ex db ⅡC T6 Gb

    Ex Ⅱ 2 D Ex tb ⅢC T80 ºC Db

    Standards

    EN IEC60079-0:2018, EN60079-1:2014, EN60079-28:2015,

    EN60079-31:2014 , IEC60079-0:2017, IEC60079-1:2014,

    IEC60079-28:2015, IEC60079-31:2013

    Certificates

    DNV 21 ATEX 38340X, IECEx DNV 21.0048X

    Mechanical

    Housing

    Stainless steel 304 or 316L

    IP

    IP66, IP68 (2m/2h)

    Cable thread hole

    1pcs M27×1.25 or M25×1.5

    sunshade

    Support

    Ambient

    Ambient temperature

    -40ºC~+60ºC

    Air pressure

    80~110kPa

    Relative Humidity

    ≦95% (no condensation) @25℃

    Camera

    Image Sensor

    1/2.8" CMOS

    Pixel

    2MP

    Max. Resolution

    1920 (H) x 1080 (V)

    ROM

    4 GB

    RAM

    1 GB

    Electronic Shutter Speed

    1/1 s–1/30000 s

    Scanning System

    Progressive

    Min. Illumination

    Color: 0.005 Lux@F1.35

    B/W: 0.0005 Lux@F1.35

    Lens

    Focal Length

    4.9 mm–156 mm

    Max. Aperture

    F1.35–F4.4

    Field of View

    H: 62.8°–2.2°; V: 36.7°–1.3°; D: 69.2°–2.6°

    Optical Zoom

    32x

    Focus Control

    Auto/Semi-Auto/Manual

    Close Focus Distance

    1 m–1.5 m (3.28 ft–4.92 ft)

    Iris Control

    Auto/Manual/Fixed

    DORI Distance

    Detect

    Observe

    Recognize

    Identify

    2152 m (7060.37 ft)

    850 m (2788.71 ft)

    430 m (1410.76 ft)

    215 m (705.38 ft)

    PTZ

    Pan/Tilt Range

    Pan: 0°–360° endless

    Tilt: 0° to +90°, auto flip 180

    Manual Control Speed

    Pan: 0.1°/s–350°/s

    Tilt: 0.1°/s–250°/s

    Preset Speed

    Pan: 500°/s

    Tilt: 500°/s

    Presets

    300

    Tour

    8 (up to 32 presets per tour)

    Pattern

    5

    Scan

    5

    Power-off Memory

    Support

    Idle Motion

    Preset/Tour/Pattern/Scanning

    Protocol

    DH-SD

    Pelco-P/D (auto recognition)

    General Intelligence

    Event Trigger

    Motion detection, video tampering, scene changing, Network disconnection,

    IP address conflict, illegal access, and storage anomaly.

    IVS

    Object Abandoned/Missing

    Artificial Intelligence

    Smart Capture Support human, motor vehicle and non-motor vehicle image capture.
    Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
    Face Detection Support
    Auto Tracking Support
    SMD PLUS Support

    Video

    Compression

    H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+

    Streaming Capability

    3 streams

    Resolution

    1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720);

    D1 (704 × 576); CIF (352×288)

    Frame Rate

    Main stream: 1080P/1.3M/720P (1–50/60 fps)

    Sub stream 1: D1/CIF (1–25/30 fps)

    Sub stream 2: 720P (1–25/30 fps)

    Bit Rate Control

    Variable/Constant

    Bit Rate

    H.264: 3 Kbps–20480 Kbps

    H.265: 3 Kbps–20480 Kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC

    Support

    WDR

    120 dB

    HLC

    Support

    White Balance

    Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

    Gain Control

    Auto/Manual

    Noise Reduction

    2D/3D

    Motion Detection

    Support

    Region of Interest (RoI)

    Support

    Image Stabilization

    Electronic

    Defog

    Electronic

    Digital Zoom

    16x

    Flip

    180°

    Privacy Masking

    Up to 24 areas, and up to 8 areas in the same view

    S/N Ratio

    ≥ 55 dB

    Audio

    Compression

    G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

    Network

    Ethernet RJ-45 (10/100Base-T)
    Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
    Interoperability ONVIF Profile S&G&T; CGI
    Streaming Method Unicast/Multicast
    User/Host 20 (total bandwidth 64M)
    Storage FTP; Micro SD card (256G); NAS
    Browser

    IE7 and later versions

    Chrome 42 and earlier versions

    Firefox 52 and earlier versions

    Safari

    Management Software Support
    Mobile Phone IOS, Android

    Port

    Audio Input 1
    Audio Output 1 (LINE OUT; bare wire)
    Two-way Audio Support
    Alarm I/O 2/1

    Power

    Power Supply

    DC24V/2.5A

    PoE+ (802.3at)

    Power Consumption

    Basic: 10W

    Max: 16W

    General

    Cable

    integrated cable

    Size

    245*245*302mm (without bracket)

    Weight

    13.5kg (without bracket)

    Mounted

    wall, ceilling

    Wall bracket

    ZAZ637-B

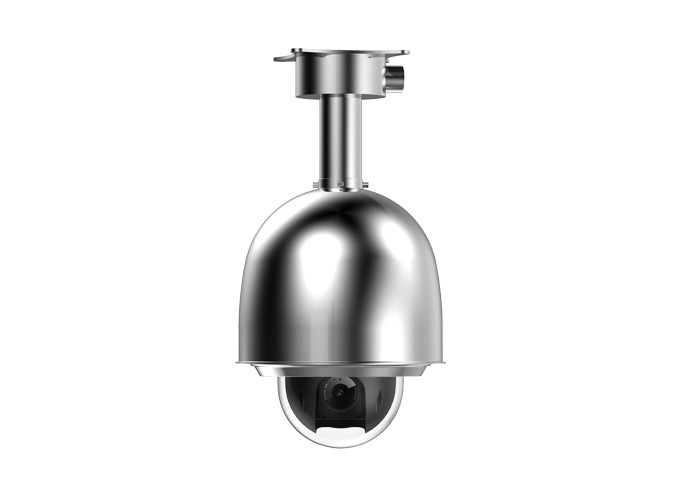

    Ceiling mounted bracket

    ZAZ637-D

    Sunshield

    optional

    Safety hook

    supported



    Dimension (with wall mount bracket)

    ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera

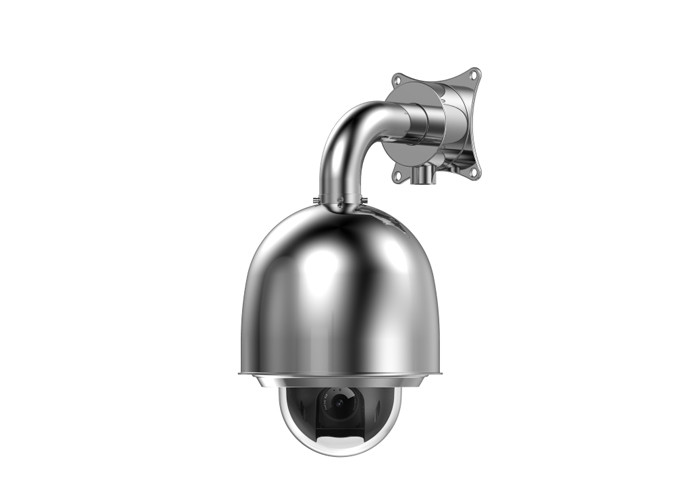

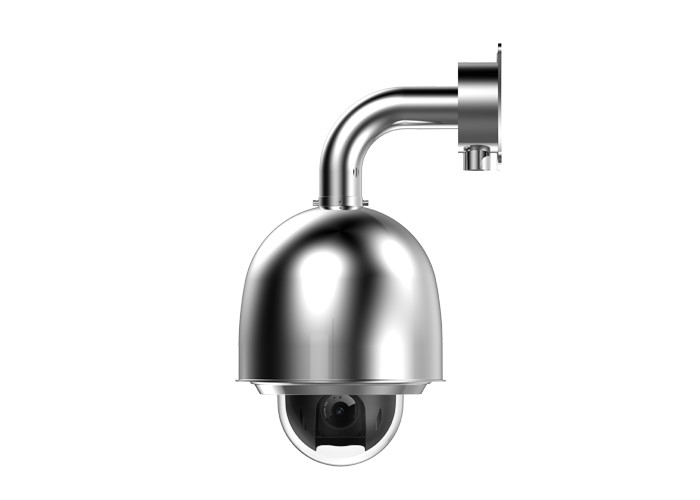

    Wall Bracket

    ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera







    Ceiling Mount Bracket

    ATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome CameraATEX, IECEx certified 5-inch 2MP 32X Explosion Proof Network PTZ Speed Dome Camera
