Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: ATEX, CNEX
Model Number: ZAF100A-SSHC-W
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Type: Analog Camera Style: Box Camera
Sensor: CCD Technology: ICR Cut
Special Features: Explosion Proof Ingress: IP68
Housing: Stainless Steel 316L Optional: Wiper, Sunshiled, Heater, Cooling Module
Camera: Analog Camera Core, Or Network Camera Weight: 9.5KG
Cleaner: Washing Spray, Water Tank, Pump

Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner



Main features:Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 0

·CNEx certificated
·Adopts stainless steel 304
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Installation: mounted on ceiling, wall with pan &tilt, brackets.
· accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
·camera optional: analog camera, network camera, thermal camera







Download Data Sheet Here:



Explosion Proof CCTV Camera Housing With Wiper System-ZAF100A series data sheet.pdf





Description:

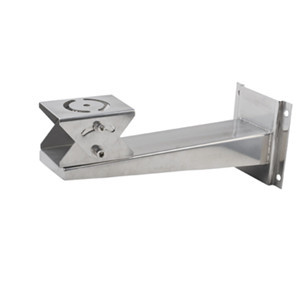

ZAF100 series is ZUOAN one of the most popular explosion proof camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100A serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100A series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.



Applications:



With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



optional:

washing system: wiper, spray, water tank, pump, water tube



Data sheet:


ZAF100A-SHC-W
Crust stainless steel 316L
Explosion proof marking Exd II CT6 & DIP A20, TA, T6
Explosion proof certification CNEx12.0006
IP rated IP68
Power input AC85-265V, AC24V
cable output  2 sets G3/4 or NPT3/4
Window glass Strong temperared glass
working temperature

-25~65°C

optional:-50~65°C

Netweight 9.5Kg
max size  for camera 300*80*80mm
Overall dimension 471*195*194mm
accessory wiper, sunshiled

Cleaner washing tank, pump, spray



Details images:

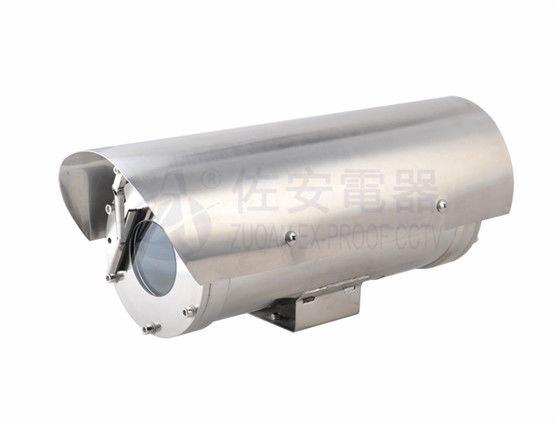

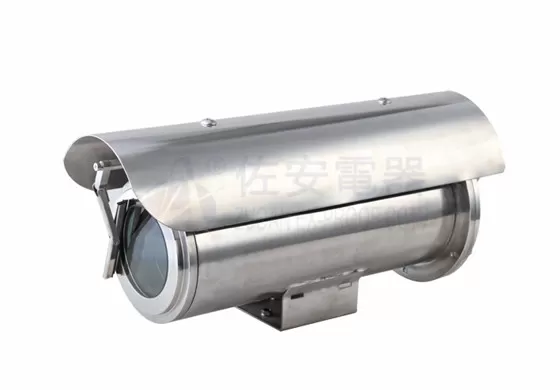

Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 1    Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 2
