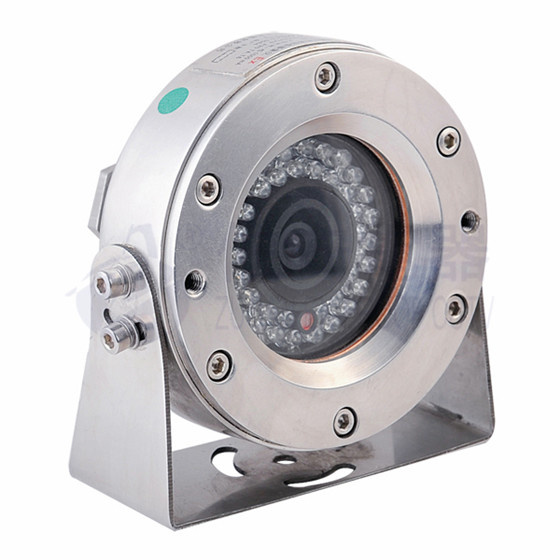

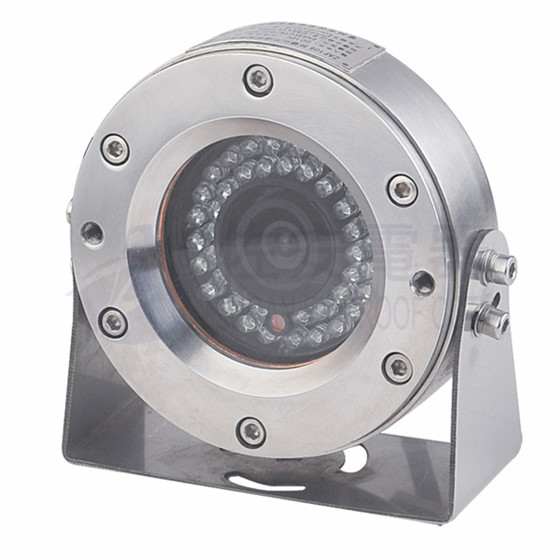

700TVL Mini Stainless Steel 316L Explosion Proof CCTV Camera For Marine Vessel
Main features:
·CNEx certificated
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·1 cable glands
·Tempered glass
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·camera: 700TVL analog camera, 6mm lens, 20m infrared lights for night vision
700TVL Mini Stainless Steel 316L Explosion Proof CCTV Camera For Marine Vessel Discription:
ZAF109 is a flame proof mini explosion proof camera monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22. ZAF109 isinternally installed with the infrared lamp with 30m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.
ZAF109-S-H ex-proofcamera its window is made of nanometer glass, which has a self- cleaning flunction,thickness 8mm.
ZAF109-S-H is installed with a SONY 1/3 CCD camera with a high resolution and a function of automatical switching from color to black.
ZAF109-S-H series has get the highest protection: IP68. for all weather use.
ZAF109-S-H series has get the explosion proof certification: CNEX. it's the only one china government authority for explosion proof test and certification.
700TVL Mini Stainless Steel 316L Explosion Proof CCTV Camera For Marine Vessel Applications:
oil tank truck, dangerous goods vehicle, oil tanker, marine vessel or other hazardous area, with flammable substance, like oil, fertilizer, gas, chemical agent, dust, power, fireworks, ect.
700TVL Mini Stainless Steel 316L Explosion Proof CCTV Camera For Marine Vessel Data sheet:
| Model |
ZAF109-SS-H |
| IP rated |
IP68 |
| working temperature |
-25~65°C |
| resolution |
700tvl |
| lens |
6mm |
| crust |
stainless steel 316L |
| Explosion proof Marking |
Exd II CT6 & DIP A20, TA, T6 |
| Explosion proof certification |
CNEx11.0584 |
| application |
Gas zone 1, 2; dust zone 20, 21,22 |
| working current |
≤1000ml |
| power consumption |
≤15W |
| power |
12VDC |
| infrared light |
20 meter |
| netweight |
2.4KG |
| Overall dimension |
106*132*126mm |
| cable output |
2 core video, 2 core power cable |
| Cable output hole |
1 set G3/4 or NPT3/4
|

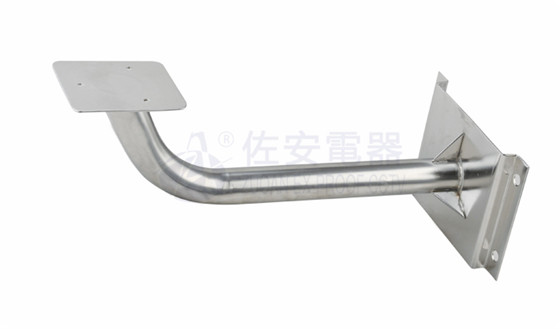

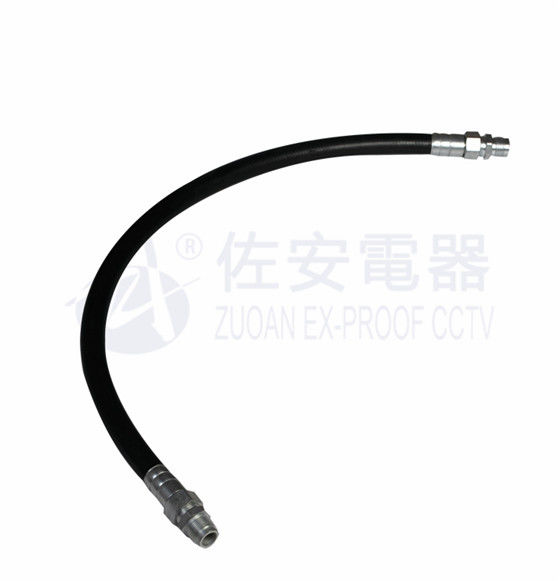

Details images:
