|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||firm carton or wooden box|
|Delivery Time:||in stock|
|Payment Terms:||100% TT before shipment|
|Supply Ability:||1000 set per month|
|price term:||EXW price|
|Type:||Digital Camera||Style:||Bullet Camera|
|Special Features:||Explosion Proof||Ingress:||IP68|
|Housing:||Stainless Steel 304||Optional:||Wiper, Sunshiled, Heater, Cooling Module|
|Camera:||0.015Lux@F1.2 (B/W), 2MP Network Camera||Weight:||9.5KG|
|Inner Max Size For Camera:||300*80*80mm|

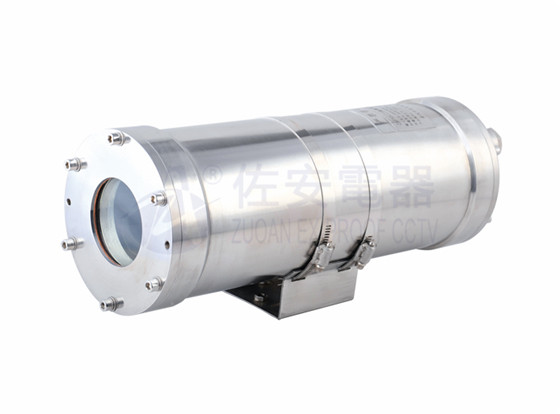

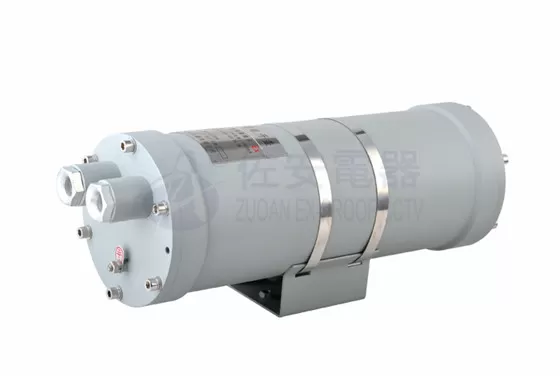

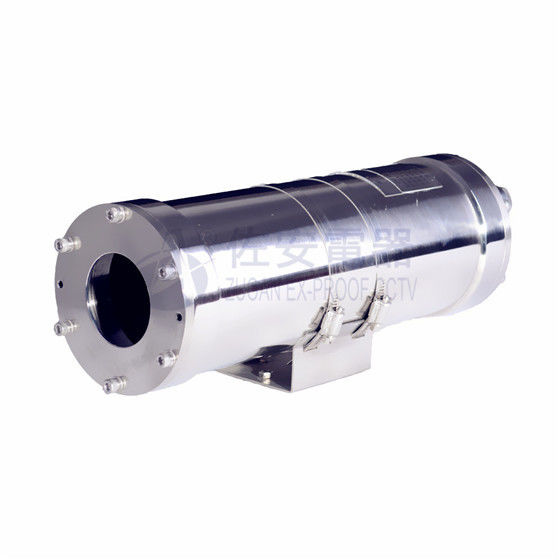

2 Megapixel Low Light Explosion Proof CCTV Camera For Dark Area
·Adopts stainless steel 304
·Surface finish: electropolished or corrosion resistant paint finish
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Installation: mounted on ceiling, wall with pan &tilt, brackets.
·accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
·camera optional: analog camera, network camera, thermal camera
ZAF100B is loaded with lower illumination 2MP network camera, which is fit for industry hazardous area with lack of lights or lamps, like LPG, oil refinery, petrochemicals, oil filed, offshore platform.
it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF100B housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100B serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100B housing inner load size: 300*80*80mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
|Crust||stainless steel 304|
|Explosion proof marking||Exd II CT6 & DIP A20, TA, T6|
|Explosion proof certification||CNEx12.0006|
|Power input||AC85-265V, AC24V|
|cable output||2 sets G3/4 or NPT3/4|
|Window glass||Strong temperared glass|
|max size for camera||300*80*80mm|
wall bracket ZAZ100B
explosion proof Flexible tube D16*1000mm
2MP network camera
0.015Lux @F1.2 (color),
0.0015Lux @ F1.2 (B/W)
1/1.9" 2.42M CMOS
H.264, MJPEG dual codec, Multiple streaming
WDR(120dB), simple focus, P-iris, Defog
Lens: Manual, DC-auto Iris, P-Iris
