700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: ATEX, CNEX
Model Number: ZAF100A-SSHC-W
Minimum Order Quantity: 1 set
Price: 0-600 USD
Packaging Details: firm carton or wooden box
Delivery Time: in stock
Payment Terms: 100% TT before shipment
Supply Ability: 1000 set per month
Type: Analog Camera Style: Box Camera
Sensor: CCD Technology: ICR Cut
Special Features: Explosion Proof Ingress: IP68
Housing: Stainless Steel 316L Optional: Wiper, Sunshiled, Heater, Cooling Module
Camera: Analog Camera Core, Or Network Camera Weight: 9.5KG
Cleaner: Washing Spray, Water Tank, Pump

700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner


Main features:700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 0

·CNEx certificated
·Adopts stainless steel 304
·Surface finish: electropolished or corrosion resistant paint finish
·2 cable glands
·Tempered glass with nanometer paint film
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·Installation: mounted on ceiling, wall with pan &tilt, brackets.
· accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication and : Pelco-D/ Pelco-P
·Output: AV/optical fiber/twisted pair/H.264
·camera optional: analog camera, network camera, thermal camera




Download Data Sheet Here:


Explosion Proof CCTV Camera Housing With Wiper System-ZAF100A series data sheet.pdf





ZAF100 series is ZUOAN one of the most popular explosion proof camera housings/ cavity/ enclosure. it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100A series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP68. ZUOAN camera housing adopts Stainless steel 304 or 316L material, which also named as corrosion proof CCTV camera,dust proof CCTV camera, weather proof CCTV camera, flame proof CCTV camera. ZAF 100A housing/ enclosure surface also can be special treated, like electro-polished, corrosion painting finish,according to customer requirement. ZAF100A serise adopts 12mm thickness tempered window glass, with sun shiled, window wiper,which is fit for outdoor and indoor mounting. ZAF100A series can be mounted on fixed brackets(model: ZAZ100-B) for one point surveillance;it also can be mounted on rotating pan&tilt (model ZAY200B) for 128 points preset and auto patrol. At the housing end flange, there're 2 threaded holes for video cable and power cable. its size is G3/4 (inner diameter is 20mm). ZAF100A camera housing size: 420*195*194mm .98% cameras on the market can be installed in our stainless steel housing. Customers can offer camera and let us to make free installation.on the other hand, ZUOAN also offer integrated housing with installed camera.




With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

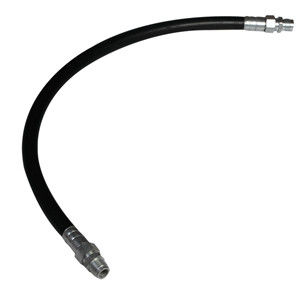

washing system: wiper, spray, water tank, pump, water tube




Certificate Mark ExdⅡC T6 GB/DIP A20 TA, T6
Certificate No CNEx12.0006
Standards Q/320412ZAF001-2001


Housing Stainless steel 304 or 316L
Cable thread hole 2pcs G3/4 or NPT3/4
Sun-shield Yes
Wiper Yes


Voltage AC85V~AC265V or DC24Vor AC24V
Power 15W/25W (with thermostat)
Surge Protect Optional, TVS6000V surge protect
Optical Fiber output Optional, multimode or single mode


Ambient temperature -25 to +60℃ / -45 to +80℃
Air pressure 80Kpa to 106Kpa
Relative Humidity ≦95% (no condensation)


Communication support analog video output
485 Communication Support Pelco-D, Pelco-P
Communicate Rate 2400 to 19200bps


Image Sensor 1/3" interline-transfer CCD
Effective pixel PAL 976*582 NTSC 976*494
Min. Illumination Color 0.04Lux B/W: 0.004Lux
Shutter Time 1/50(1/60) sec~ 1/10,000 sec
Day&Night Auto ICR
Horizontal resolution 700TVL (color), 720TVL (B&W)
S/N ratio >50dB(AGC off)


Focal Length 4-92mm, 23X/or 36X optical
Aperture Range F1.5-F3.6
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10mm-1500mm(Wide-Tele)
Zoom Speed Approx. 3s(Optical, Wide-Tele)


Camera address on/off (0-254)
Focus Mode Auto/Manual/One touch
Gain off/ lower/ higher
Slow shutter X256 MAX
White Balance Auto white balance 1/auto white balance 2/Manual/auto
Private Off/ Mode 1/ Mode 2
Video 3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoom X16
Zoom display on/off
ZCF control mode mode 1, mode 2
RS485 protocol, baud rate, address


Cable integrated cable
Size 472*195*194mm
Weight 9.5kg
Mounted wall, pole

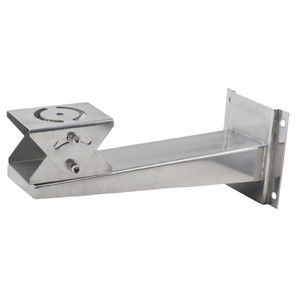

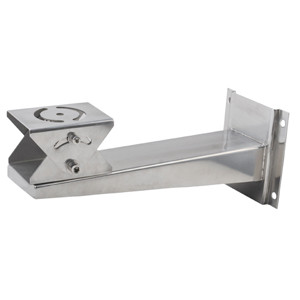

Wall bracket ZAZ100B


Details images:

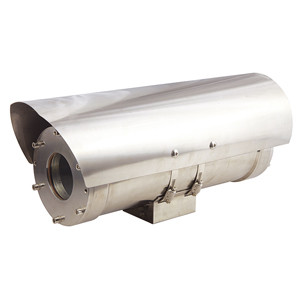

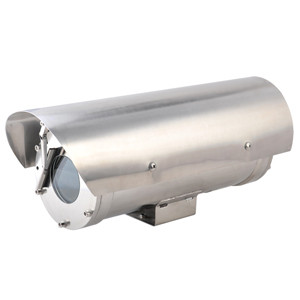

700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 1    700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 2

Other products:

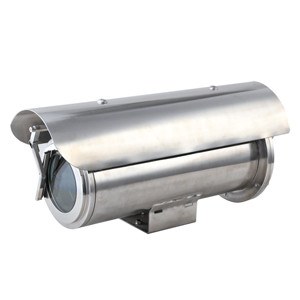

700TVL Stainless Steel 316L IP68 Dust Proof Explosion Proof Camera With Cleaner 3
