Explosion Proof Enclosure
Created with Pixso.

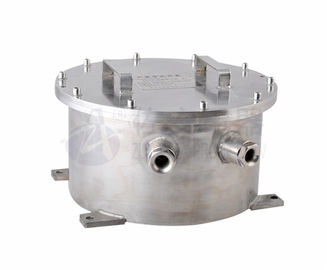

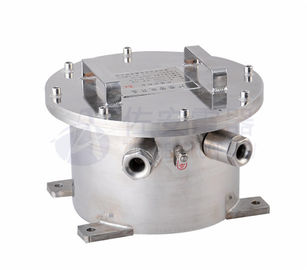

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter

Brand Name: ZUOAN
Model Number: ZAJ300
MOQ: 1 set
Price: 0-300USD
Payment Terms: 100% TT
Supply Ability: 1000 set per month
Detail Information
Place of Origin:
China
Certification:
CNEX, ATEX
Ingress:
IP68
Enclosure:
Stainless Steel 304/316L
Cable Hole:
4 Sets Of G3/4 (NPT3/4)
Packaging Details:
firm carton
Product Description

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter





ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter 0

Main features:

Pressure: 80KPa~106KPa
Ambient temperature: –40°C~+65°C
Relative humidity: less than 95%(+25°C)
Ex-proof marking: ExdⅡCT6/DIP A20 TA, T6
Enclosure degree: IP65
Working voltage: AC85~265V
Wiring mouth: 4 access
Overall dimension: 326*326*161mm
Explosion proof enclosure can load fiber converter, power converter, surge protect device



Descirption:

ZAJ300, ATEX Explosion Proof  enclosure can loadiber converter, power converter, surge protect device. The explosion proof function totally meets the standard of the mechanical and electronic demand of China explosion proof GB3836-2000. It can be applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(expect C2H2). The exterior is concise.



 Applications:

With stringent certifications, exlosion proof enclsoure can load fiber converter, power conveter or surge protect device. It is widely  for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.



ZAJ300 explosion proof box data sheet.pdf



Data sheet:

Model ZAJ300
crust carbon steel, stainless steel 304/316L
explosion proof marking Exd II CT6 &DIP A20, TA, T6
explosion proof certification CNEx13.4246
application gas zone 1, zone 2, dust zone 20, 21, 22
IP rated IP68
can load power adaptor /surge protect device, optical converter, decoder
water seal O-ring Yes
cable threaded hole  4sets G3/4  (or NPT3/4)
Net weight 14.7Kg
Overall dimension 326*326*161mm
Inner installation dimension 234*234*119mm






Technical Drawings:

ATEX Stainless Steel Explosion Proof Enclosure For Fiber Converter, Power Converter 1
