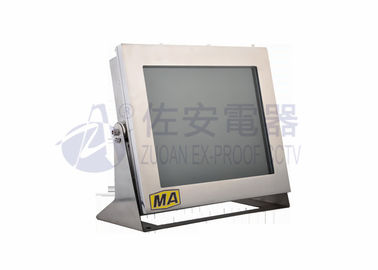

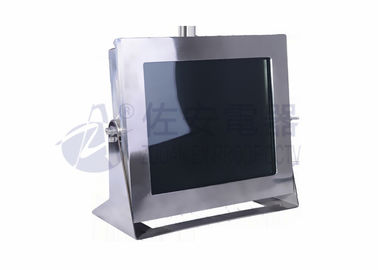

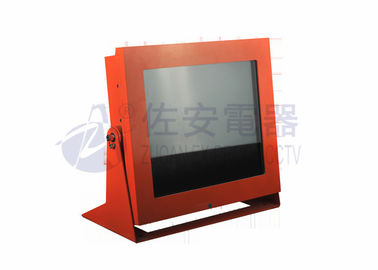

Rig Floor Display Explosion Proof CCTV Monitor of 17 inch Screen
Rig floor display summary:
ZAJS400 is a rig floor display, which already get the explosion proof certificate. Therefore, rig floor display can fit for gas zone 1, zone 2, dust zone 21, and zone 22. Rig floor display is made of stainless steel or carbon steel, which weather proof rate is IP66. RIg floor display has 17inch LED screen, and its video input singal can be AV or VGA type. Rig floor display has reach to 1280*1024 resolution, and has fast response time of 5ms.
Rig floor display features:
- get explosion proof certficate
- weather proof is IP66
- adopts stainless steel 304 or carbon steel
- 17 inch LED screen
- apply for rig floor display
- reach to 1280*1024 resolution
- support AV or VGA singal input
- high contrast radio: 1000:1
- fast response time: 5ms
- tempered glass screen
Rig floor display applications:
Our ZAJS400 rig floor display is developed for industry area with explosive gas, oil, chemical and powders. With Ex d & Ex tD marking, it can apply for gas zone 1, zone 2; dust zone 21, and zone 22.
Rig floor display explosion proof CCTV monitor data sheet download:
ZAJS400 17inch explosion proof monitor.pdf
Rig floow display explosion proof CCTV monitor Video show link
Rig floor dispaly explosion proof CCTV monitor specification:
Certificate
| Certificate Mark |
ExdⅡB T6 Gb / DIP A20 TA, T6 |
| Certificate No |
CNEx13.4246 |
| Standards |
Q/320412ZAF014-2013 |
Mechanical
| Housing |
Stainless steel 304 or 316L |
| IP |
IP66 |
| Cable thread hole |
1pcs , or 2pcs G3/4 or NPT3/4 |
Electrical
| Voltage |
AC85V～AC265V or DC24Vor AC24V |
| Power |
50W |
| Surge Protect |
Optional, TVS6000V surge protect |
Ambient
| Ambient temperature |
-25 to +60℃ / -45 to +80℃ |
| Air pressure |
80Kpa to 106Kpa |
| Relative Humidity |
≦95% (no condensation) |
Function
| Dot Pitch |
0.24825mm*0.24825mm |
| Resolution |
1920*1080P |
| Brightness |
300cd/m2 |
| Contrast |
1000:01:00 |
| Response Time |
14ms (G. To G) |
| Color |
16.7M |
| Line Frequency |
31.5-60KHz |
| Field Frequency |
56-75Hz, Flick-free |
| View Degree |
Horizontal 176° |
| Connector Port |
VGA,or BNC, S-VHS, RGB, CVBS |
General
| Cable |
integrated cable |
| Size |
473*200*396mm |
| Weight |
28kg |
| Mounted |
desk |
Rig floor display explosion proof CCTV monitor drawings:
Rig floor display solution:
Rig floor display accessories:
ZAJ320 Ex controller Ex connector Ex DVR, NVR box
