products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Explosion Proof Dome Camera
Created with Pixso.

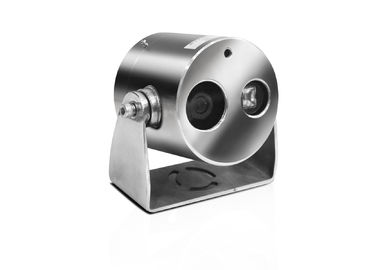

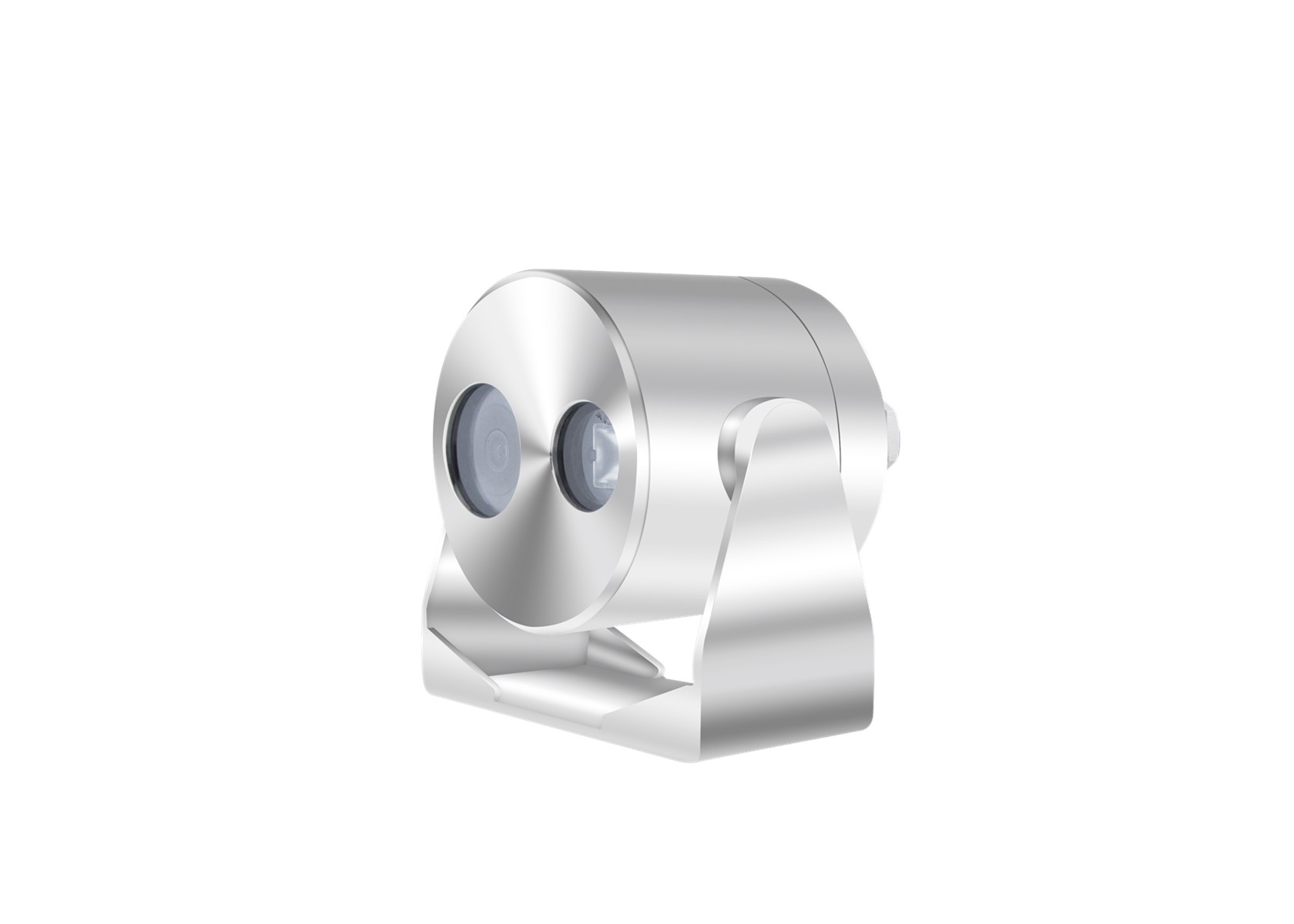

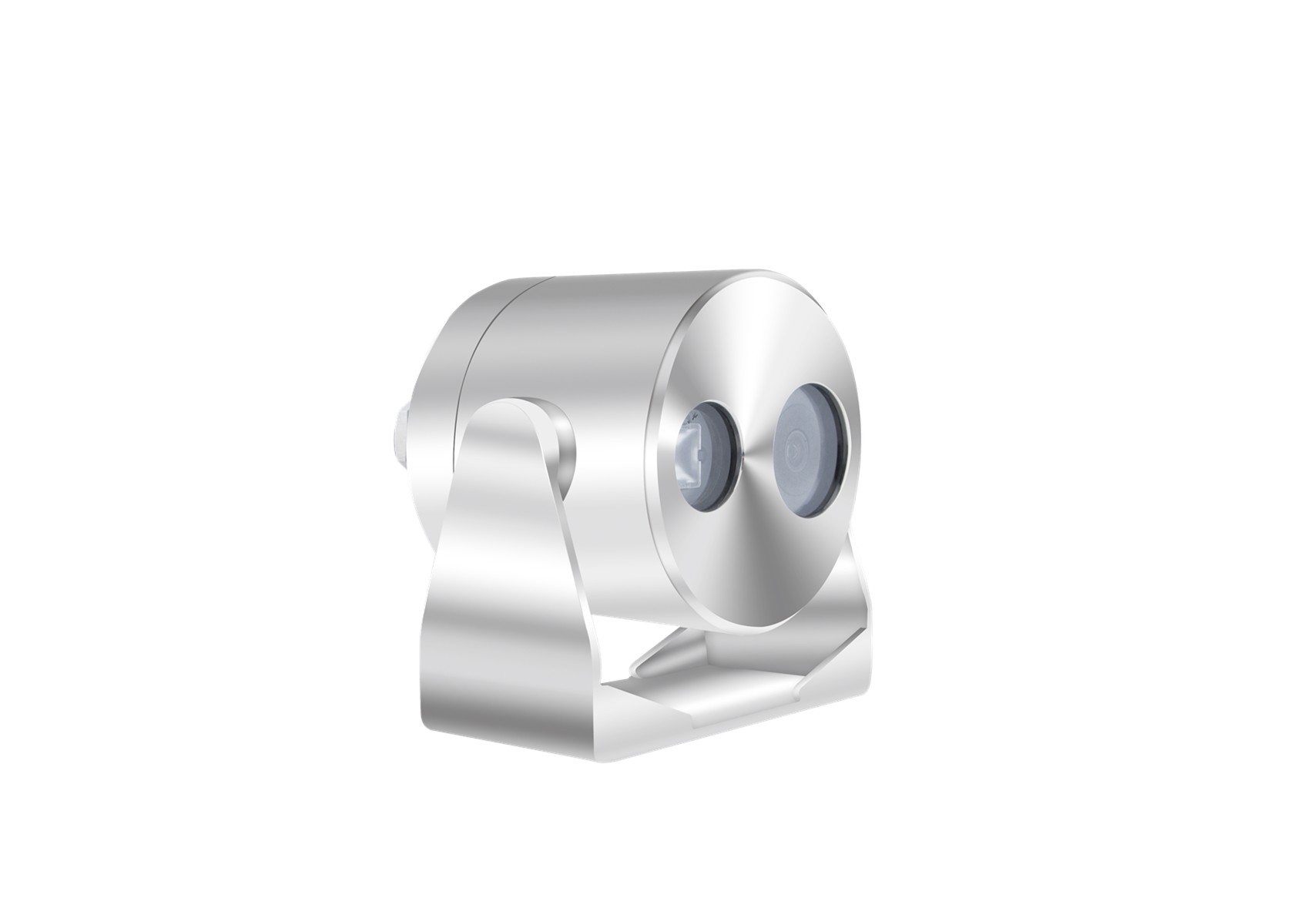

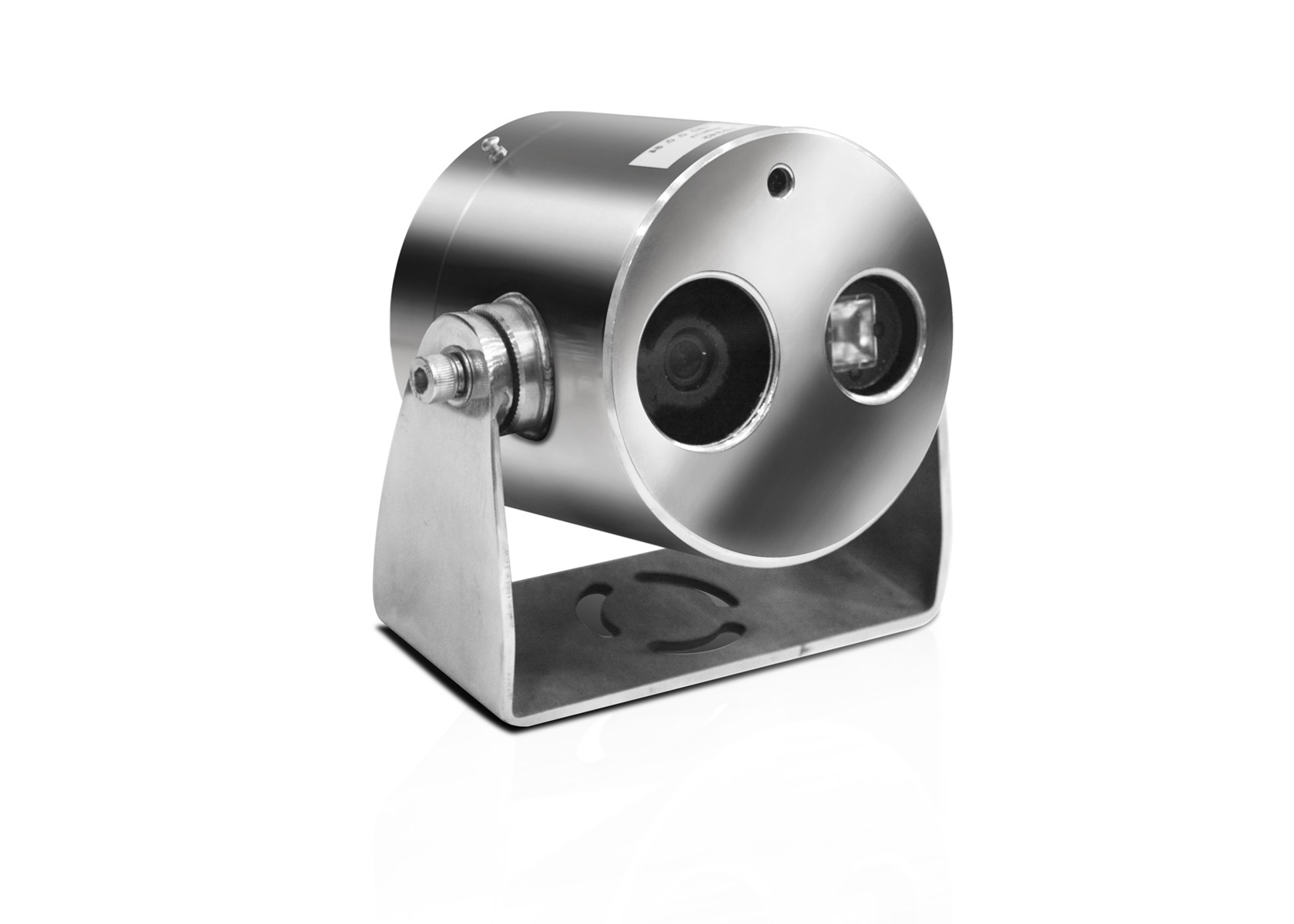

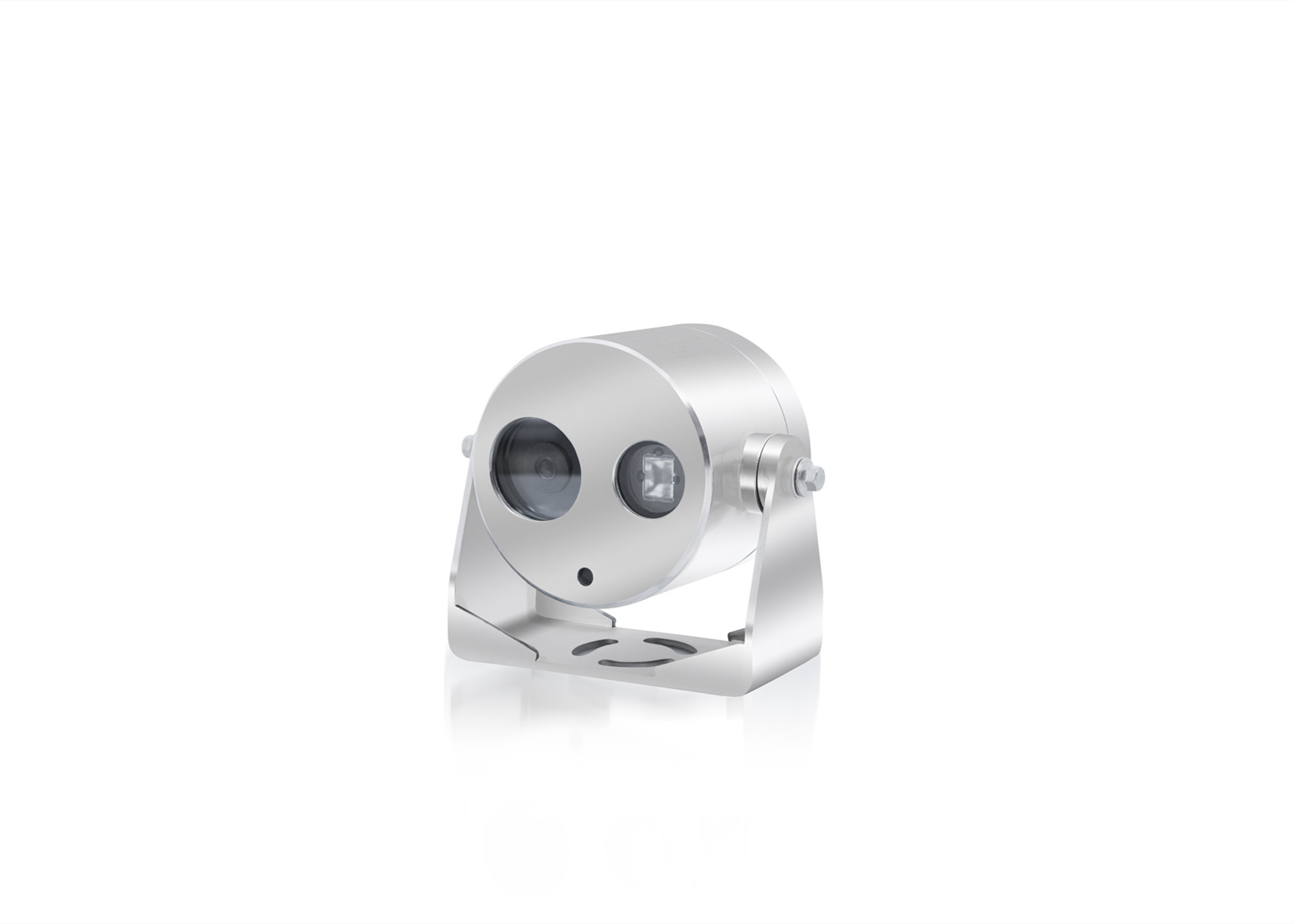

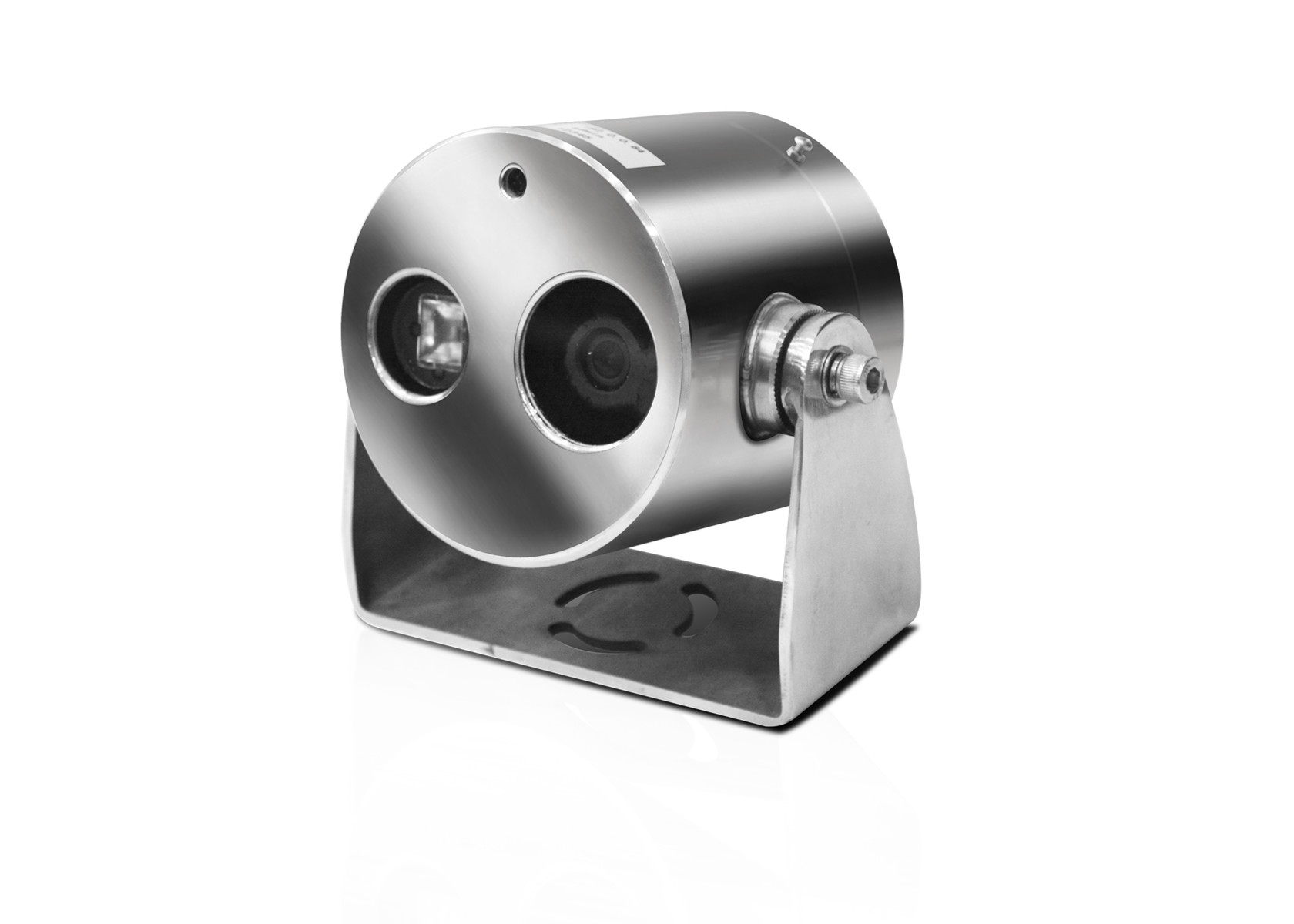

5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone

5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone

5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone

Brand Name: ZUOAN
Model Number: ZAF109
MOQ: MOQ 1set
Price: US300-600 per set
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CNEx
Material:
Stainless Steel 304 , 316L
Certification:
CNEx
Ingress Protection:
IP68
Resolution:
5 Mega Pixel
Lens:
4.0mm@F2.0
Smart IR:
Up To 30m IR Distance
Compression:
Ultra 265,H.265, H.264, MJPEG
Network:
ONVIF Conformance
Power Input:
DC12V/POE
Power Consumption:
Max 7.5W
Apply Area:
Gas Zone 1, 2; Dust Zone 21, 22.
Operate Temperature:
–20°c～+60°C
Cable Entry:
M27*1.25
Weight:
4.3kg
Packaging Details:
carton box
Product Description

ZAF109 5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone


Summary:

ZAF109 is ZUOAN new developed smart explosion proof infrared dome camera in 2020 year, which is 5 mega pixel camera fit for gas zone 1, zone 2; dust zone 21, zone 22. This camera is fixed 4.0mm lens , and also adopts smart IR, up to 30m night vision distance.

ZAF109 enclosure is made of stainless steel 304 and 316L material. Its window adopts toughened glass. At the side of enclosure, there is also flexible bracket for various mounted way. ZAF109 Explosion-proof Camera is CNEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.

At the end of rear flange, there are 1 cable entry for pigtail cable thread by. This camera requires DC12V and POE.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The ZAF109 explosion proof CCTV camera ingress protection level also reach to IP68(1.2m/45min).

Client are all welcomed to offer your brand camera to us. We also perfer assembly client camera into this explosion proof enclosure.

Service Condition:


  • Atmosphere pressure: 80～120kPa
  • Ambient temperature: -20 ºC～+60 ºC
  • Relative humidity: no more than 95% (+25ºC)；

5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 05MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 1

Specifications:


Model ZAF109
Camera type 4MP 5MP
Atmospheric pressure 80KPa～110Kpa
Ambient Temperature –20°c～+60°C
Relative Humidity ≤95% (+25°c)
Ex-proof mark Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
Explosion proof Certified CNEx 16.2526
Ingress Protection IP68
Housing Material Stainless Steel 304 or 316L
Image Sensor 1/3" Progressive Scan CMOS 1/2.7" Progressive Scan CMOS
Signal PAL/NTSC
Max. Image Resolution 2592*1520,25fps 2592*1944, 25fps
Frame Rate

Main Stream: 4MP (2592*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps

Sub Stream: 4CIF (704*576), Max 30fps;

Third Stream: CIF (352*288), Max 30fps

Main Stream: 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2048*1536), Max 30fps;

2MP (1920*1080), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps
Min. Illumination Colour:0.01Lux (F2.0, AGC ON)
0Lux with IR on		 0.005Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter 1/3 sec to 1/100,000 sec
Lens 4mm (6mm optional)
Lens of angle

4mm @ F2.0,

82°(H), 41.6°(V); 100.9°(O)

4mm @ F1.6,

79.7°(H), 51.8°(V); 98.1°(O)
Lens mount M12
Day& Night: IR cut filter with auto switch
Image Enhancement 2D/ 3D DNR 2D/ 3D DNR
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Communication interface 1 RJ45 10M / 100M ethernet interface
ROI Support 1 fixed region for main stream and sub stream separately
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.264/MJPEG
Video bit rate 32kpbs~12Mbps 32kpbs~16Mbps
Dual streams Support
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile T), API
Light night vision 0-30m
Voltage Input DC12V/ POE(802.3af)
Power consumption 5w Max
Cable output Integrated cable, 2m long
Cable gland 1pcs G3/4 or M27*1.25
Overall dimension
LxWxH		 168*150*148mm
Net weight 4.3 kg






Drawings:
5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 2

ATEX CCTV Camera Accessories:
5MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 35MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 45MP Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 5
                wall bracket                       mount adapter                    Ex flexible tube





Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
