Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Model Number: ZAF109
Minimum Order Quantity: MOQ 1set
Price: US300-600 per set
Packaging Details: carton box
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Certification: CNEx Material: Stainless Steel 304 , 316L
Ingress Protection: IP68 Resolution: 1312*993
Lens: 3.6mm@F2.0 Smart IR: Up To 30m IR Distance
Singal: PAL Video Output: 1 Analog HD Output (HD-TVI Standard)
Power Input: DC12V/POE Power Consumption: Max 7.5W
Apply Area: Gas Zone 1, 2; Dust Zone 21, 22. Operate Temperature: –20°c~+60°C
Cable Entry: M27*1.25 Weight: 4.3kg

ZAF109 Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone


Summary:

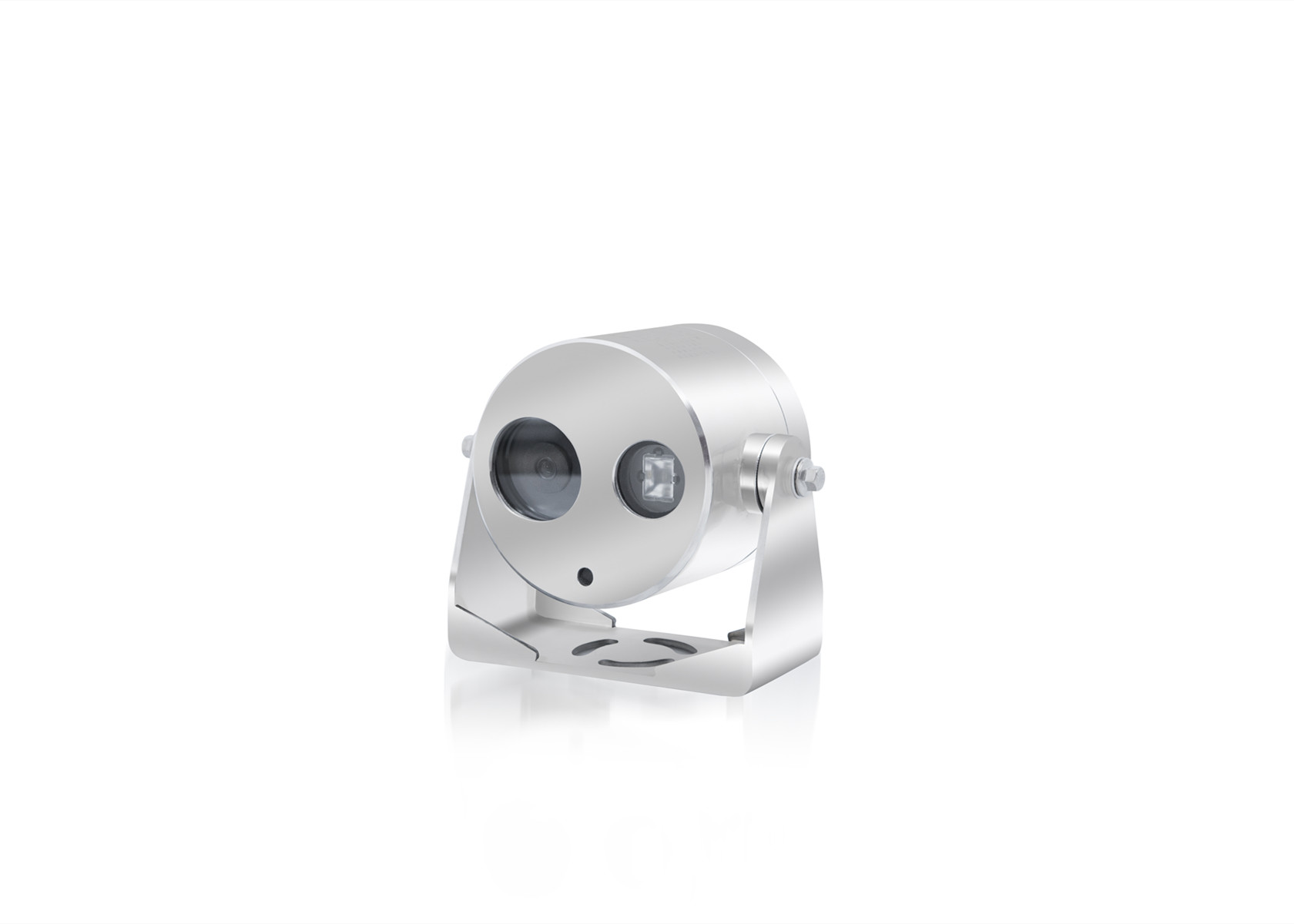

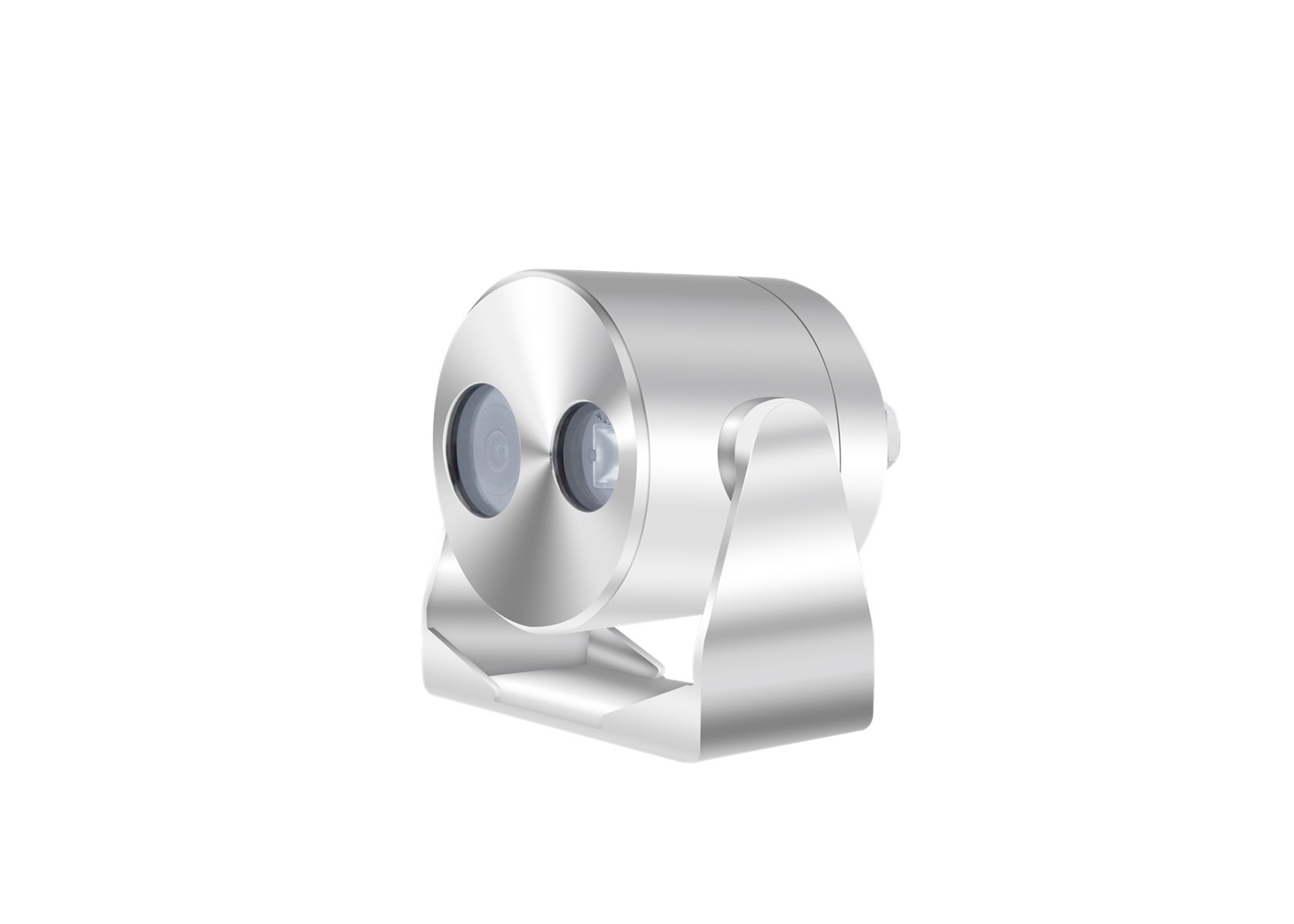

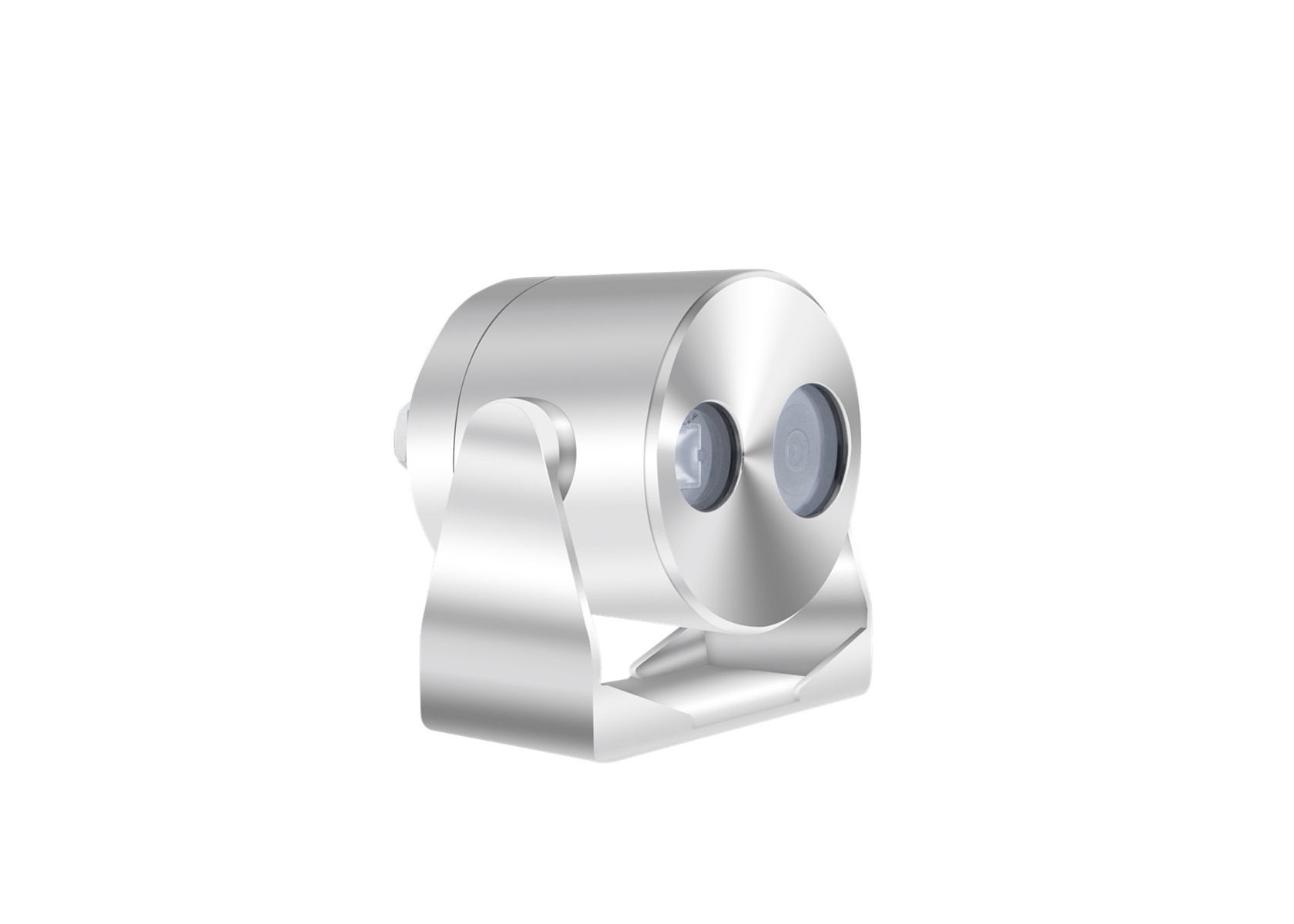

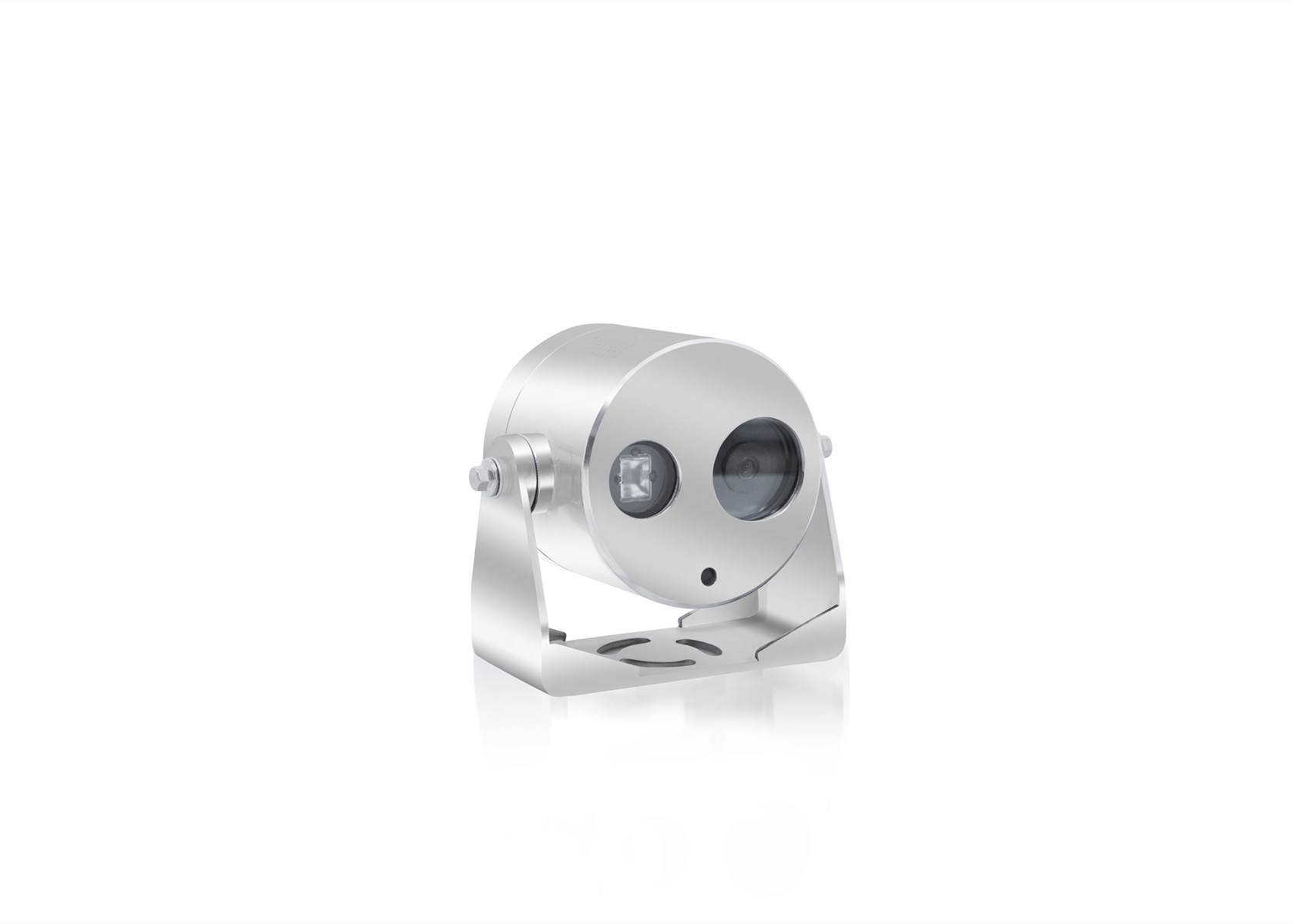

ZAF109 is ZUOAN new developed smart explosion proof infrared dome camera in 2020 year, which is analog HD camera fit for gas zone 1, zone 2; dust zone 21, zone 22. This camera is fixed 3.6mm lens , and also adopts smart IR, up to 30m night vision distance.

ZAF109 enclosure is made of stainless steel 304 and 316L material. Its window adopts toughened glass. At the side of enclosure, there is also flexible bracket for various mounted way. ZAF109 Explosion-proof Camera is CNEx certified, which is applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists. It also applicable for Zone 21 and Zone 22 hazardous areas that explosive dust may exist.

At the end of rear flange, there are 1 cable entry for pigtail cable thread by. This camera requires DC12V.
All joints of enclosure are protected by O rings and lip type sealing ring, which satisfied Ex tb dust ignition protection requirements. The ZAF109 explosion proof CCTV camera ingress protection level also reach to IP68(1.2m/45min).

Client are all welcomed to offer your brand camera to us. We also perfer assembly client camera into this explosion proof enclosure.

Service Condition:


Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 0Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 1

Specifications:


Model ZAF109
Atmospheric pressure 80KPa~110Kpa
Ambient Temperature –20°c~+60°C
Relative Humidity ≤95% (+25°c)
Ex-proof mark Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
Explosion proof Certified CNEx 16.2526
Ingress Protection IP68
Housing Material Stainless Steel 304 or 316L
Image Sensor 1.3 Mega Progressive Scan CMOS
Signal PAL
Effective pixel 1312*993
Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter 1/50 sec to 1/50,000 sec
Lens 3.6mm (6mm optional)
Lens agnle 78°(3mm)51.2° (6mm)
Lens mount M12
Day& Night: IR cut filter with auto switch
Frequency 720p@25fps
Video output 1 Analog HD output (HD-TVI standard)
SN Rate above 62 dB
Auto Gain Lower/ middle/ high/ off
Color Color/ B&W / IR
White balance auto/ manual
Private protect on/off, 8 zones
Move detection on/off, 4 zones
Exposure totally exposure/ wide balance
3D denoise lower/ middle/ high/ off
Function SMART IR contrast, Sharpness, saturability, mirror, zoom
Light night vision 0-30m
Voltage Input DC12V ±15%
Power consumption 5w Max
Cable output Integrated cable, 2m long
Cable gland 1pcs G3/4 or M25*1.5
Overall dimension
LxWxH
168*150*148mm
Net weight 4.3 kg






Drawings:
Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 2

ATEX CCTV Camera Accessories:
Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 3Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 4Analog HD Fix Explosion Proof Network Infrared Dome Camera for gas zone, dust zone 5
                wall bracket                       mount adapter                    Ex flexible tube







Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
