550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights

550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights

    • 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights
    • 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights
    • 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights
    • 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights
  • 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights

    Product Details:

    Place of Origin: China
    Brand Name: ZUOAN
    Certification: CNEX
    Model Number: ZAT680

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 0-5000 USD
    Packaging Details: firm carton or wooden box
    Delivery Time: in stock
    Payment Terms: 100% TT before shipment
    Supply Ability: 1000 set per month
    price term: EXW price
    Contact Now
    Detailed Product Description
    Type: Analog Camera Style: Dome Camera
    Sensor: CCD Technology: Pan / Tilt / Zoom
    Special Features: Explosion Proof Ingress: IP68
    Housing: Stainless Steel 304/316L Preset Patrol: 128 Points
    Camera: 550TVL, 36X Optical Zoom Camera Weight: 16KG
    Pan And Tilt: 360 Degree Auto Tracking Infrared Light: 60m Distance

    550TVL 36X Flame Proof  Explosion Proof Dome Camera With Infrared Lights



    Main features:550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights

    Highest ingress: IP68 rated
    Housing: Stainless Steel 304, 316L crust
    Explosion proof certification: CNEx.13.4243
    Double explosion proof marking: Exd II CT6 & DIP A20, TA, T6
    Apply: Gas zone 1, 2; dust zone 20, 21,22.
    wide voltage: AC85~265V, AC24V
    net weight: 16 Kg
    package dimension: 165*165*420mm
    mounted: wall, or ceiling
    rotation: horizontal 360 °, vertical 0~-90°
    rotation speed: 0.1-45°/s
    preset point: 128 points
    control: RS485,
    communication: AV
    protocol: TCP/IP/ pelco-d/pelco-p
    optional camera insde: 550TVL, 36X zoom camera
    infrared light: 60m distance





    550TVL 36X Flame Proof  Explosion Proof Dome Camera With Infrared Lights Description:

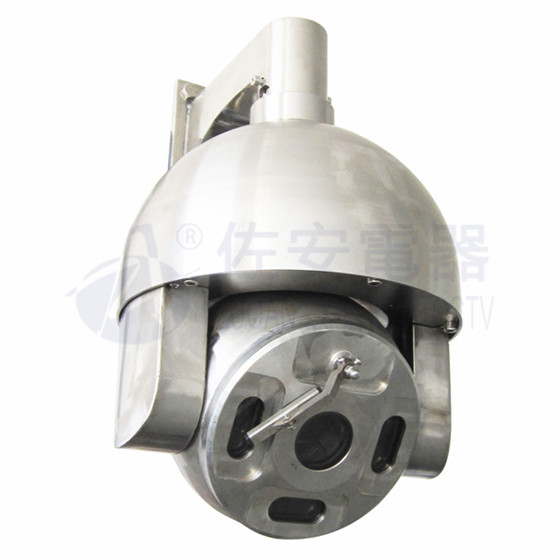

    ZAT680 550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Light is ZUOAN 2014 year new developed products, which is also the China first explosion proof type ptz dome camera with IR lights.  ZAT680 is an integrated products, with pan and tilt, zoom camera, infrared lights, wiper system.  Dome Housing inner and outside is full of metal struction, which is greatly avioid the water condensation problem. ZAT680 explosion proof dome camera has the features of high speed location and preset accuracy. the explosion proof housing is a ready-to-use kit, for all brand analong type cctv camera, like samsung CCTV camera, sony cctv camera, hikvision cctv camera, dahua cctv camera.
    its infrared light adopts Made in Germany, OSRAM, which has longer life time, night vision distance 60m.

     550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights

    550TVL 36X Flame Proof  Explosion Proof Dome Camera With Infrared Lights Applications:

    With stringent certifications, explosion proof dome camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project, Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.





    550TVL 36X Flame Proof  Explosion Proof Dome Camera With Infrared Lights Data sheet:

    Model ZAT680
    Crust stainless steel 304,316L
    Camera type

    1/4" Exview HAD CCD (progressive scan)

    550TVL, 36X optical zoom,

     focal length: 3.4*-122.4mm

    Explosion proof certified Exd II CT6 & DIP A20, TA, T6
    certification No. CNEx13.4243
    Weather proof IP68
    Infrared lights 600m night vision
    Running speed 0.1-45°/S
    Running angle horizontal 360 °, vertical - 90~0°
    preset point 128 points
    function auto scanning, auto cruise, keep watch
    power input AC24V, AC220V, AC85-265V
    operate temperature

    -40~65°C

    Control  RS485, Pelco-D / Pleco-P
    Signal output AV
    Netweight 16Kg



    Overall Dimension and wall bracket

    550TVL 36X Flame Proof Explosion Proof Dome Camera With Infrared Lights
