| Place of Origin: | China, Changzhou |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx |
| Model Number: | ZAF1032-EXIR |
| Minimum Order Quantity: | 1set |
| Price: | USD300-USD500 per set |
| Packaging Details: | Firm carton |
| Delivery Time: | 7 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |
| Housing: | Explosion Proof | Camera: | Analog HD Output, Up To 1080P Resolution |
|---|---|---|---|
| WDR: | 120dB True WDR | Technology: | EXIR 2.0, Up To 20m IR Distance |
| Communication: | POC | Crust Material: | Stainless Steel 304, 316L |
| Weather Proof: | IP68 | Apply Area: | Zone 1, Zone 2, Zone 21, Zone 22 |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux With IR | Lens: | 2.8-12mm@ F1.4 |
| Day/night: | IR Cut Filter With Auto Switch | HD Video Output: | 1 Analog HD Output |
| CVBS Output: | 1Vp-p Composite Output(75Ω/BNC) | IR Range: | 0-20m Or 20-60m |
| Power Input: | DC12V, AC24V, POE, AC220V | Weight: | 12kg |
HD1080P WDR EXIR Explosion Proof CCTV Camera by POC Communication
HD1080P WDR EXIR explosion proof CCTV camera summary:

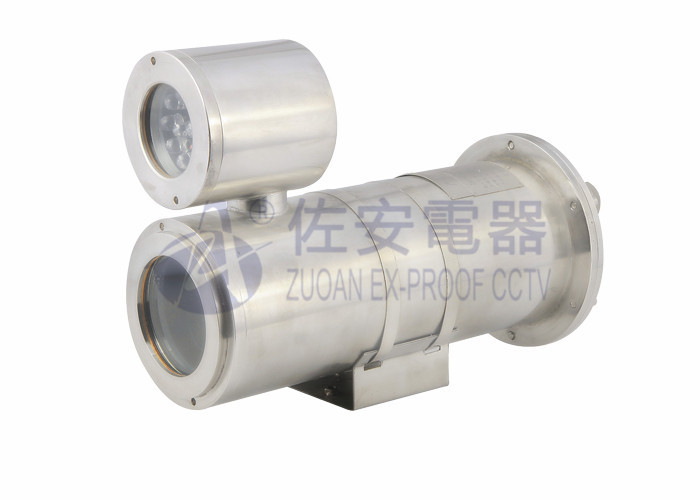

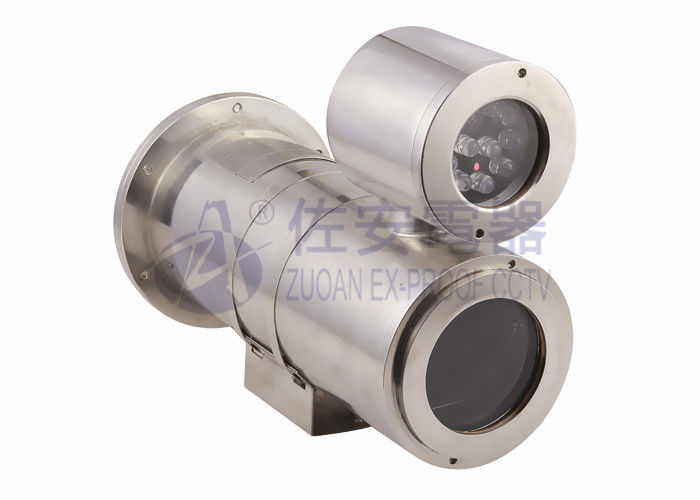

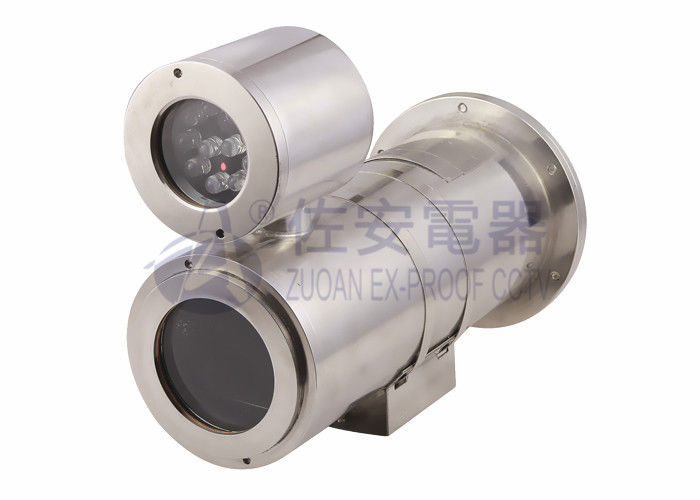

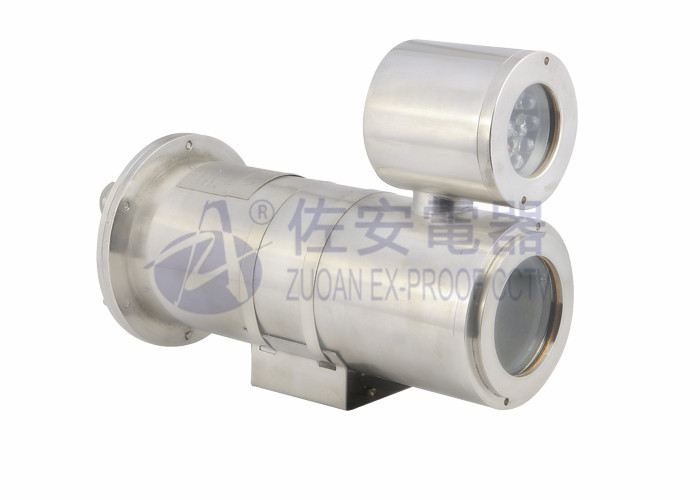

ZAF1032-EXIR is featured as HD 1080P explosion proof camera. It adopts EXIR technology, which can control IR lights according to different lens focal length. Its housing is explosion proof certified, especially applying for flammable and explosive gas or flammable dust environment, to achieve the purpose of monitoring the hazardous area. ZAF1032 explosion proof camera also has infrared lights for night vision. Its IR distance can reach to 20m or 60m. Following HDTVI standards, video output is analog HD type. This explosion proof CCTV camera also support various power input, such as DC12V, POE power supply, AC24V, AC220V. The compact structure, small size make it convenient for installation and maintenance.
HD1080P WDR EXIR explosion proof CCTV Camera features:
• 2.0 Megapixel high-performance CMOS
• Explosion proof type enclosure
• Analog HD output, up to 1080P resolution
• 120dB true WDR
• True Day/Night
• OSD menu, 3D DNR, Smart IR
• EXIR technology, 20/60m IR distance
• IP68 weatherproof
• Low illumination
• POC communication, Up the Coax(HIKVISION-C, Pelco-C Protocol)
Application:
HD1080P WDR EXIR explosion proof CCTV Camera is design for industry hazardous area, such as petrol industry, chemical industry, wharf, harbor, non-coal mine, aerospace industry, aircraft industry, military industry, food processing industry and so on.
HD 1080P WDR EXIR explosion proof CCTV camera data sheet download:
ZAF1032 HD1080P WDR explosion proof CCTV camera.pdf
HD 1080P WDR EXIR explosion proof CCTV camera specification:
Certificate
| Certificate Mark | ExdⅡC T6 Gb / Ext D A21 IP68 T80℃ |
| Certificate No | CNEx16.0708 |
| Standards |
Q/320412ZAF032-2016 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 2pcs G3/4 or NPT3/4 |
| Sun-shield | Yes |
Electrical
| Voltage | AC85V～AC265V or DC24Vor AC24V |
| Power | 15W/25W (with thermostat) |
Camera
| Image Sensor | 2.0 Megapixel high-performance CMOS |
| lens | 2.8-12mm@ F1.4 |
| Effective pixel | PAL 1956*1266 |
| Min. Illumination | Color 0.01Lux 0Lux with IR |
| Shutter Time | 1/50(1/60) sec~ 1/50,000 sec |
| Day&Night | Auto ICR |
| S/N ratio | ＞62dB(AGC off) |
| WDR | 120dB true WDR |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
General
| Cable | integrated cable |
| Size | 390*249*170mm |
| Weight | 11.7kg |
|
Mounted |
wall, pole |
|
Wall Bracket |
ZAZ100B |
Accessories:
ZA-JXD4 Explosion Proof JB ZANXG Exe Flexible Tube ZAZ100B wall bracket
