Type: | Digital Camera | Style: | Mini Camera |
---|---|---|---|
Sensor: | CMOS | Technology: | ICR Cut |
Special Features: | Explosion Proof | Ingress: | IP68 |
Housing: | Stainless Steel 316L | Infared Lights: | 20-30m Night Vision Distance |
Camera: | 1.3megapixel, 6mm Lens | Weight: | 4KG |
Power Input: | DC12V, Or POE Power Supply |
1.3 Megapixel Network Heavy Duty Mini Explosion Proof CCTV Camera With Infrared Lights
Main features:
·CNEx certificated
·Adopts stainless steel 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·1 cable glands
·Tempered glass
·Applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·camera : 1.3MP camera with 6mm lens
Description:
ZAF109-S-HD is 1.3MP HD mini explosion proof camera monitoring equipment. It can be applied in the explosive gas automosphere, like zone1 and zone2 withⅡA,ⅡB orⅡC, and in flammable dust environment, like zone 20,zone21 and zone22. ZAF109 isinternally installed with the infrared lamp with 20m viewing distance, which is suitbale for a less scope night vision environment inside and outside. The ex-proof frade and temperature groups all accord with the highest requirements of National standards.
Applications:
oil tank truck, dangerous goods vehicle, oil tanker, or other hazardous area, with flammable substance, like oil, fertilizer, gas, chemical agent, dust, power, fireworks, ect.
Data Sheet:
Model | ZAF109-SS-HD |
IP rated | IP68 |
working temperature | -25~65°C |
resolution | 1.3MP, 3MP |
lens | 3.6mm, 4mm, 6mm,12mm, optional |
crust | stainless steel 316L |
Explosion proof Marking | Exd II CT6 & DIP A20, TA, T6 |
Explosion proof certification | CNEx16.2526 |
application | Gas zone 1, 2; dust zone 20, 21,22 |
working current | ≤1000ml |
power consumption | ≤15W |
power | 12VDC/POE |
infrared light | 20-30meter |
netweight | 4KG |
Overall dimension | 144*158*167mm |
cable output | network cable, 2 core power cable |
Cable output hole | 1 set G3/4 or NPT3/4 |
Mini Network Explosion Proof Camera with Lights-ZAF109 data sheet.pdf

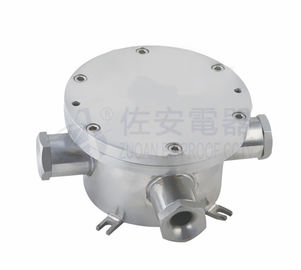

Details images:
