Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination

Basic Information
Place of Origin: China
Brand Name: ZUOAN
Certification: CNEx, IECEx
Model Number: ZAF1032
Minimum Order Quantity: 1pcs
Price: 1-1000USD
Packaging Details: netural box
Delivery Time: 7 days
Supply Ability: 500 pcs per month
Certificate: IECEx, CNEx Material: 304 Stainless Steel
Apply: Dust Zone 21, 22 Sun-shield: 304 Stainless Steel
Cavity: Flame Proof Cavity IP: IP68
Cable: Integrated Cable Or Optical Fiber Cable Hole: 2 G3/4 Hole
Voltage: AC24V, AC85-265V Power: 15W/ 25W With Thermostat
Surge Protect: Optional Temperature: -25 To +60℃
Camera: 700TVL Color Lens: 4-92mm
Zoom: 23X Optical Aperture Range: F1.5-F3.6
Angle Of View: 49-2.2 Degree(Wide-Tele) Lights Distance: 20-60m, Or 60-100m


Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination


Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 0

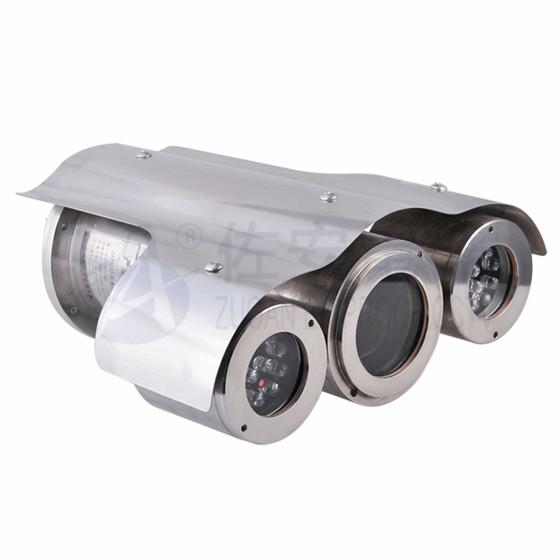

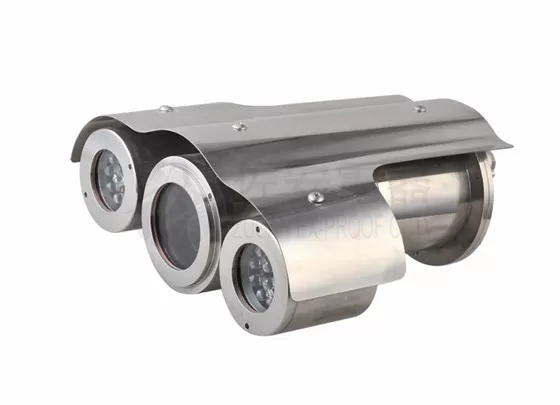

      ZAF1032 series is an Ex d analogue fix camera station, which is made of 304 stainless steel cavity. Its flame proof enclosure can add stainless steel sun shroud. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF1032 cable output usually is 2meters. ZAF1032 cable output can be coaxial cable or optical fiber cable. ZAF1032 fixed camera station is also has integral illumination lights. It has long distance night vision, which can be 20-60m or 60-100m.  Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.

We also can offer ZAF1032 flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com


ZAF1032 series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.
Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 1           Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 2           Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 3

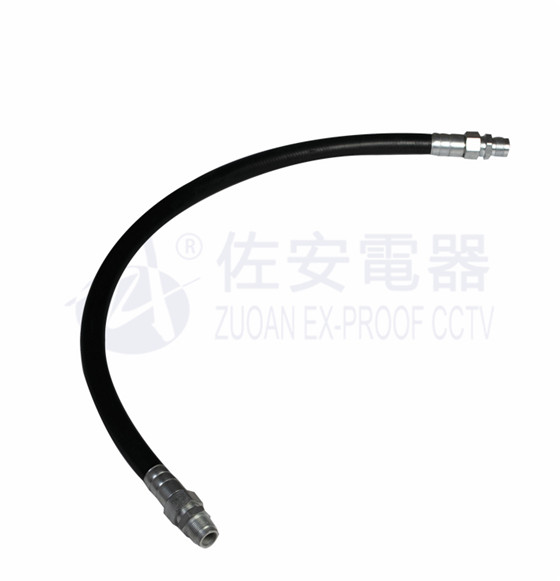

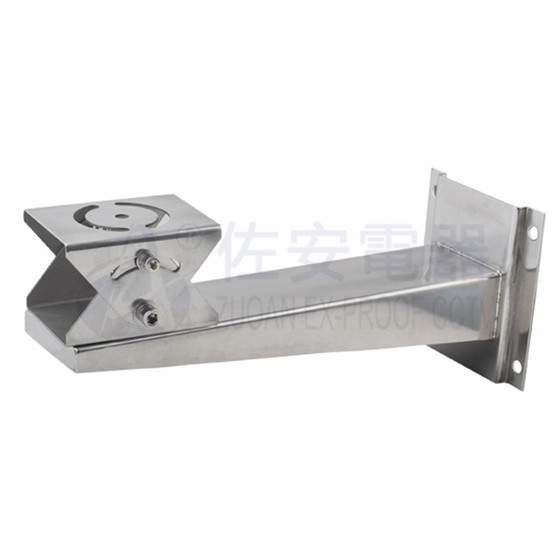

ZAZ100B wall bracket           ZAJXD4 Exd Junction box       ZANXG1.0 Exe flexible tube

Certificate

Certificate MarkExdⅡC T6 Gb / Ext D A21 IP68 T80℃
Certificate NoCNEx16.0708
StandardsQ/320412ZAF032-2016


Mechanical

HousingStainless steel 304 or 316L
IPIP68
Cable thread hole2pcs G3/4 or NPT3/4
Sun-shieldYes
WiperNo


Electrical

VoltageAC85V~AC265V or DC24Vor AC24V
Power15W/25W (with thermostat)
Surge ProtectOptional, TVS6000V surge protect
Optical Fiber outputOptional, multimode or single mode


Ambient

Ambient temperature-25 to +60℃ / -45 to +80℃
Air pressure80Kpa to 106Kpa
Relative Humidity≦95% (no condensation)


Lights

Lights20-60m, or 60-100m infrared lights
Lights ControlSupport


Communication

Communicationsupport analog video output
485 CommunicationSupport Pelco-D, Pelco-P
Communicate Rate2400 to 19200bps


Camera

Image Sensor1/3" interline-transfer CCD
Effective pixelPAL 976*582 NTSC 976*494
Min. IlluminationColor 0.04Lux B/W: 0.004Lux
Shutter Time1/50(1/60) sec~ 1/10,000 sec
Day&NightAuto ICR
Horizontal resolution700TVL (color), 720TVL (B&W)
S/N ratio>50dB(AGC off)


Lens

Focal Length4-92mm, 23X/or 36X optical
Aperture RangeF1.5-F3.6
Angle of View49-2.2 degree(Wide-Tele)
Min. Working Distance10mm-1500mm(Wide-Tele)
Zoom SpeedApprox. 3s(Optical, Wide-Tele)


Control

Camera addresson/off (0-254)
Focus ModeAuto/Manual/One touch
Gainoff/ lower/ higher
Slow shutterX256 MAX
White BalanceAuto white balance 1/auto white balance 2/Manual/auto
PrivateOff/ Mode 1/ Mode 2
Video3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoomX16
Zoom displayon/off
ZCF control modemode 1, mode 2
RS485protocol, baud rate, address


General

Cableintegrated cable
Size367*335*170mm
Weight13.9kg
Mountedwall, pole
Wall bracketZAZ100B



Drawings:
Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 4

Other flame proof housing:

Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 5                Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 6              Night Vision Long Distance Ex d Fixed Camera Station With Integral Illumination 7
ZAF100B housing with sunshiled            ZAF105 middle housing       ZAF1031 Housing with lights



Special order/ requirements

Contact us for special requirements, Email: info@exproofcctv.com
