Certificate: | IECEx, CNEx | Material: | 316L Stainless Steel |
---|---|---|---|
Apply: | Dust Zone 21, 22 | Wiper: | Auto On/off |
Sun-shield: | 316L Stainless Steel | Cavity: | Flame Proof Cavity |
IP: | IP68 | Cable: | Integrated Cable Or Optical Fiber |
Cable Hole: | 2 G3/4 Hole | Voltage: | AC24V, AC85-265V |
Power: | 15W/ 25W With Thermostat | Surge Protect: | Optional |
Temperature: | -25 To +60℃ | Camera: | 700TVL Color |
Lens: | 4-92mm | Zoom: | 23X Optical |
Aperture Range: | F1.5-F3.6 | Angle Of View: | 49-2.2 Degree(Wide-Tele) |
Analogue Fixed Camera Stations In 316L Stainless Steel Cavity With Wiper System

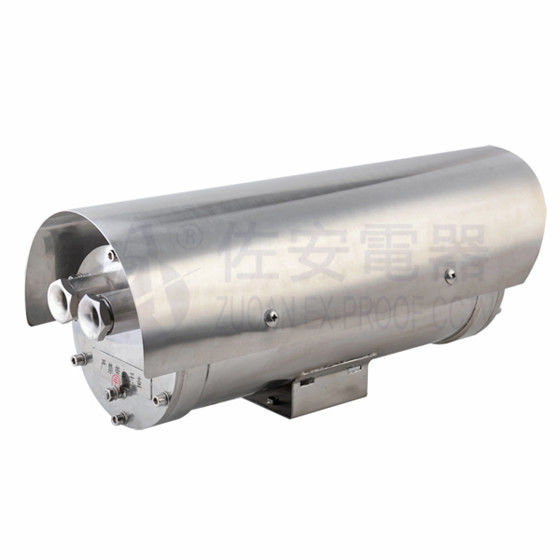

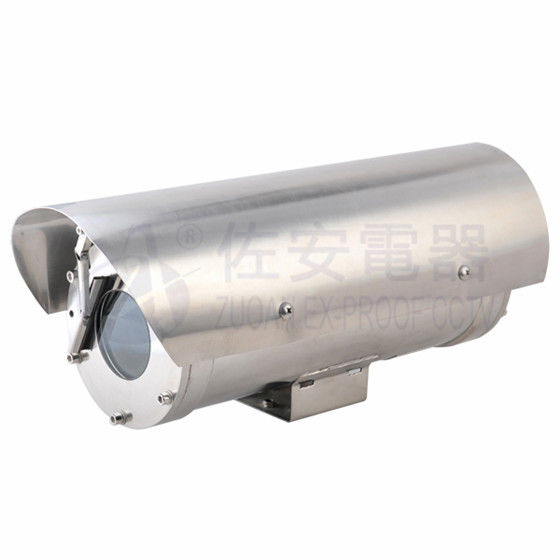

ZAF100A series is an analogue fix camera station, which is made of 316L stainless steel cavity. Its flame proof enclosure is also equipped with auto controlled wiper systems. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF100A cable output usually is 2meters. ZAF100A wiper can be auto controlled by RS485. Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.
We also can offer ZAF100A flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com
ZAF100A series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.

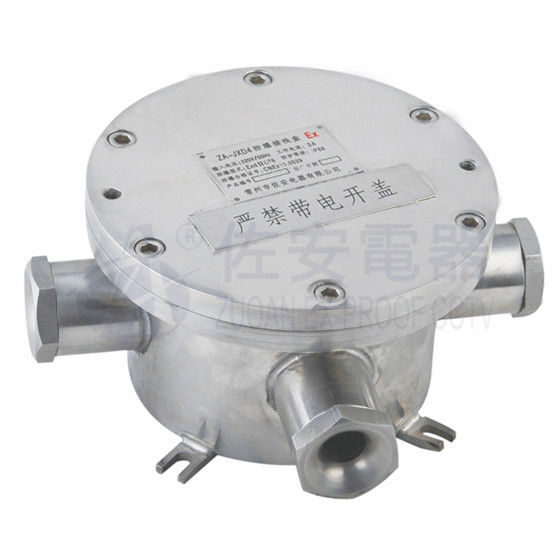

ZAZ100B wall bracket ZAJXD4 Exd Junction box ZANXG1.0 Exe flexible tube
Certificate
Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
Certificate No | CNEx12.0006 |
Standards | Q/320412ZAF001-2001 |
Mechanical
Housing | Stainless steel 304 or 316L |
IP | IP68 |
Cable thread hole | 2pcs G3/4 or NPT3/4 |

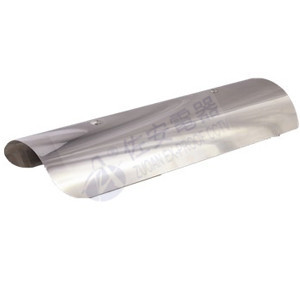

Sun-shield | Yes |
Wiper | Yes |
Electrical
Voltage | AC85V~AC265V or DC24Vor AC24V |
Power | 15W/25W (with thermostat) |
Surge Protect | Optional, TVS6000V surge protect |
Optical Fiber output | Optional, multimode or single mode |
Wiper | Auto control, by RS485 |
Ambient
Ambient temperature | -25 to +60℃ / -45 to +80℃ |
Air pressure | 80Kpa to 106Kpa |
Relative Humidity | ≦95% (no condensation) |
Communication
Communication | support analog video output |
485 Communication | Support Pelco-D, Pelco-P |
Communicate Rate | 2400 to 19200bps |
Camera
Image Sensor | 1/3" interline-transfer CCD |
Effective pixel | PAL 976*582 NTSC 976*494 |
Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
Day&Night | Auto ICR |
Horizontal resolution | 700TVL (color), 720TVL (B&W) |
S/N ratio | >50dB(AGC off) |
Lens
Focal Length | 4-92mm, 23X/or 36X optical |
Aperture Range | F1.5-F3.6 |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10mm-1500mm(Wide-Tele) |
Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
Camera address | on/off (0-254) |
Focus Mode | Auto/Manual/One touch |
Gain | off/ lower/ higher |
Slow shutter | X256 MAX |
White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
Private | Off/ Mode 1/ Mode 2 |
Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
Digital zoom | X16 |
Zoom display | on/off |
ZCF control mode | mode 1, mode 2 |
RS485 | protocol, baud rate, address |
General
Cable | integrated cable |
Size | 472*195*194mm |
Weight | 9.5kg |
Mounted | wall, pole |
Wall bracket | ZAZ100B |
Drawings:
Other flame proof housing:
ZAF100B housing with sunshiled ZAF105 middle housing ZAF1031 Housing with lights
