| Place of Origin: | China |
|---|---|
| Brand Name: | ZUOAN |
| Certification: | CNEx, IECEx |
| Model Number: | ZAF102 |
| Minimum Order Quantity: | 1pcs |
| Price: | 1-1000USD |
| Packaging Details: | netural box |
| Delivery Time: | 7 days |
| Supply Ability: | 500 pcs per month |
| Certificate: | IECEx, CNEx | Material: | 316L Stainless Steel |
|---|---|---|---|
| Apply: | Dust Zone 21, 22 | Wiper: | Auto On/off |
| Sun-shield: | 316L Stainless Steel | Cavity: | Flame Proof Cavity |
| IP: | IP68 | Cable: | Integrated Cable Or Optical Fiber |
| Cable Hole: | 2 G3/4 Hole | Voltage: | AC24V, AC85-265V |
| Power: | 15W/ 25W With Thermostat | Surge Protect: | Optional |
| Temperature: | -25 To +60℃ | Camera: | 700TVL Color |
| Lens: | 4-92mm | Zoom: | 23X Optical |
| Aperture Range: | F1.5-F3.6 | Angle Of View: | 49-2.2 Degree(Wide-Tele) |

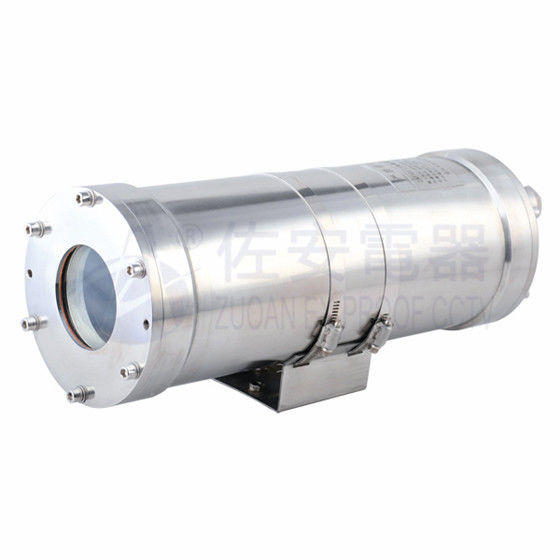

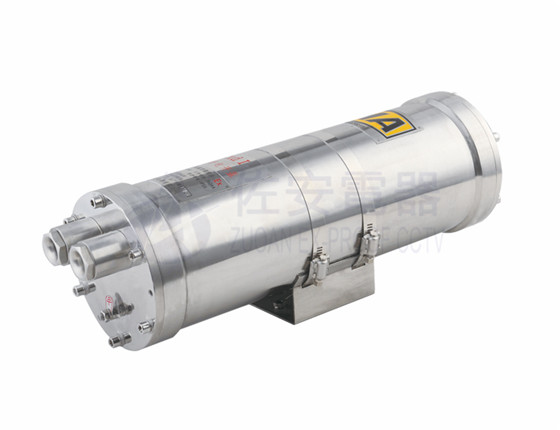

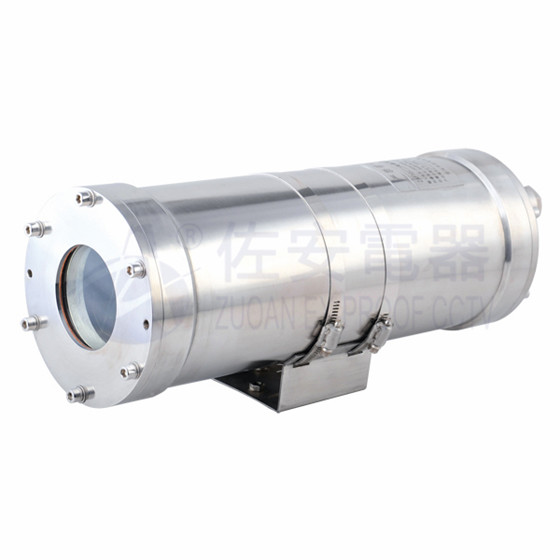

Explosion Protected Analogue Zoom Fixed Camera Station In 316L Stainless Steel
ZAF102 series is an analogue fix camera station, which is made of 316L stainless steel cavity. Its flame proof enclosure can add stainless steel sun shroud. It is load analogue 700TVL camera, 4-92mm lens, 23x optical zoom. ZAF102 cable output usually is 2meters. ZAF102 cable output can be coaxial cable or optical fiber cable. Its front window is strong temperated glass. In high corrosion area, we also offer a special treated window glass, so as to keep the glass anti-corrosion.
We also can offer ZAF102 flame proof cavity only, if you wish to load local brand camera. Please free contact us by info@exproofcctv.com
ZAF102 series has some accessories, like ZAZ100B wall bracket, ZAJXD4 explosion proof junction box, ZANXG1.0 explosion proof flexible tube.

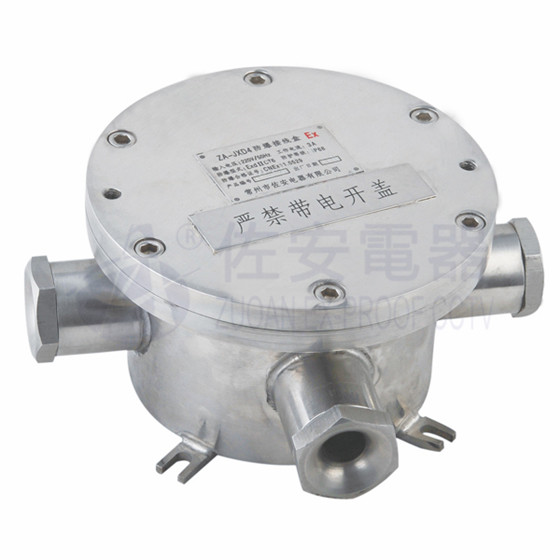

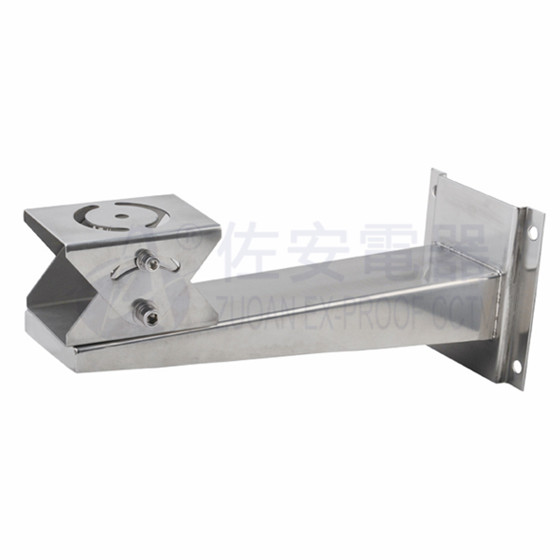

ZAZ100B wall bracket ZAJXD4 Exd Junction box ZANXG1.0 Exe flexible tube
Certificate
| Certificate Mark | ExdⅡC T6 GB/DIP A20 TA, T6 |
| Certificate No | CNEx12.0004 |
| Standards | Q/320412ZAF002-2001 |
Mechanical
| Housing | Stainless steel 304 or 316L |
| IP | IP68 |
| Cable thread hole | 2pcs G3/4 or NPT3/4 |
| Sun-shield | Yes |
| Wiper | Yes |
Electrical
| Voltage | AC85V～AC265V or DC24Vor AC24V |
| Power | 15W/25W (with thermostat) |
| Surge Protect | Optional, TVS6000V surge protect |
| Optical Fiber output | Optional, multimode or single mode |
Ambient
| Ambient temperature | -25 to +60℃ / -45 to +80℃ |
| Air pressure | 80Kpa to 106Kpa |
| Relative Humidity | ≦95% (no condensation) |
Communication
| Communication | support analog video output |
| 485 Communication | Support Pelco-D, Pelco-P |
| Communicate Rate | 2400 to 19200bps |
Camera
| Image Sensor | 1/3" interline-transfer CCD |
| Effective pixel | PAL 976*582 NTSC 976*494 |
| Min. Illumination | Color 0.04Lux B/W: 0.004Lux |
| Shutter Time | 1/50(1/60) sec~ 1/10,000 sec |
| Day&Night | Auto ICR |
| Horizontal resolution | 700TVL (color), 720TVL (B&W) |
| S/N ratio | ＞50dB(AGC off) |
Lens
| Focal Length | 4-92mm, 23X/or 36X optical |
| Aperture Range | F1.5-F3.6 |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10mm-1500mm(Wide-Tele) |
| Zoom Speed | Approx. 3s(Optical, Wide-Tele) |
Control
| Camera address | on/off (0-254) |
| Focus Mode | Auto/Manual/One touch |
| Gain | off/ lower/ higher |
| Slow shutter | X256 MAX |
| White Balance | Auto white balance 1/auto white balance 2/Manual/auto |
| Private | Off/ Mode 1/ Mode 2 |
| Video | 3D DNR, mirror, brightness, Contrast, Sharpness adjustable |
| Digital zoom | X16 |
| Zoom display | on/off |
| ZCF control mode | mode 1, mode 2 |
| RS485 | protocol, baud rate, address |
General
| Cable | integrated cable |
| Size | 421*155*185mm |
| Weight | 7.8kg |
| Mounted | wall, pole |
| Wall bracket | ZAZ100B |
Drawings:
Other flame proof housing:
ZAF100B housing with sunshiled ZAF105 middle housing ZAF1031 Housing with lights
Special order/ requirements
Contact us for special requirements, Email: info@exproofcctv.com
